Coreless Brushed & Brushless DC Motors – Structure, Advantages & Applications

author: Wingfong Motor
2026-03-25

Coreless DC motors are high-performance solutions designed for precision motion control. Unlike conventional ironcore motors, they feature an ironless rotor constructed from highdensity copper windings, eliminating cogging, iron losses, and excessive inertia. This design delivers excellent efficiency, responsiveness, and smoothness—making them a reliable choice for high-performance applications worldwide.

At Wingfong Motor, we focus on designing and manufacturing high-quality coreless brushed and brushless DC motors, engineered to meet the strict requirements of medical, robotics, aerospace, and industrial automation markets.

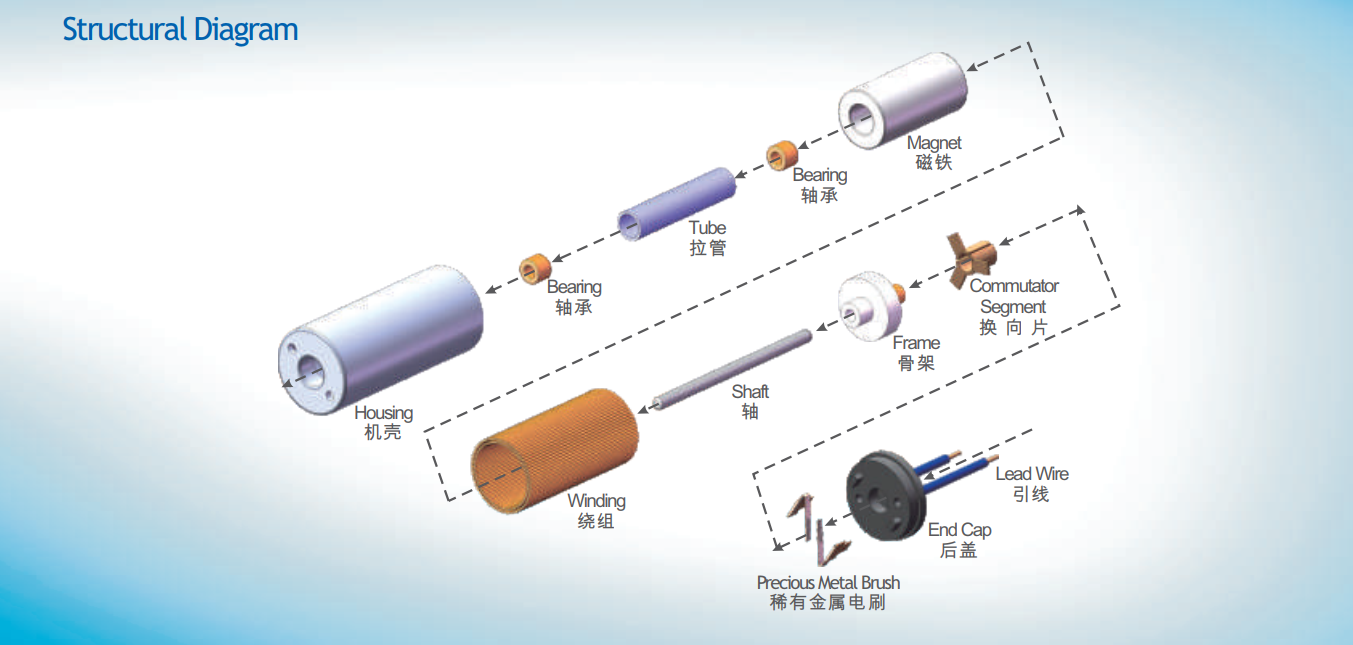

Brushed Coreless DC Motors

● Structure: Precisionwound copper rotor + highgrade permanent magnet stator + reliable brushcommutator commutation

● Wingfong Advantages:

○ Ultrafast response (mechanical time constant < 15ms)

○ Compact, lightweight design (up to 50% smaller than ironcore equivalents)

○ High efficiency (up to 90%)

○ Smooth, coggingfree operation

○ Costeffective, easytodrive solution

● Key Applications: Medical pumps, precision instruments, smart locks, power tools, hobby models, and lowpower automation systems.

DC-brushed-micro-motor-exploded-structural-diagram-with-labeled-spare-parts-housing-magnet-winding-brush-commutator

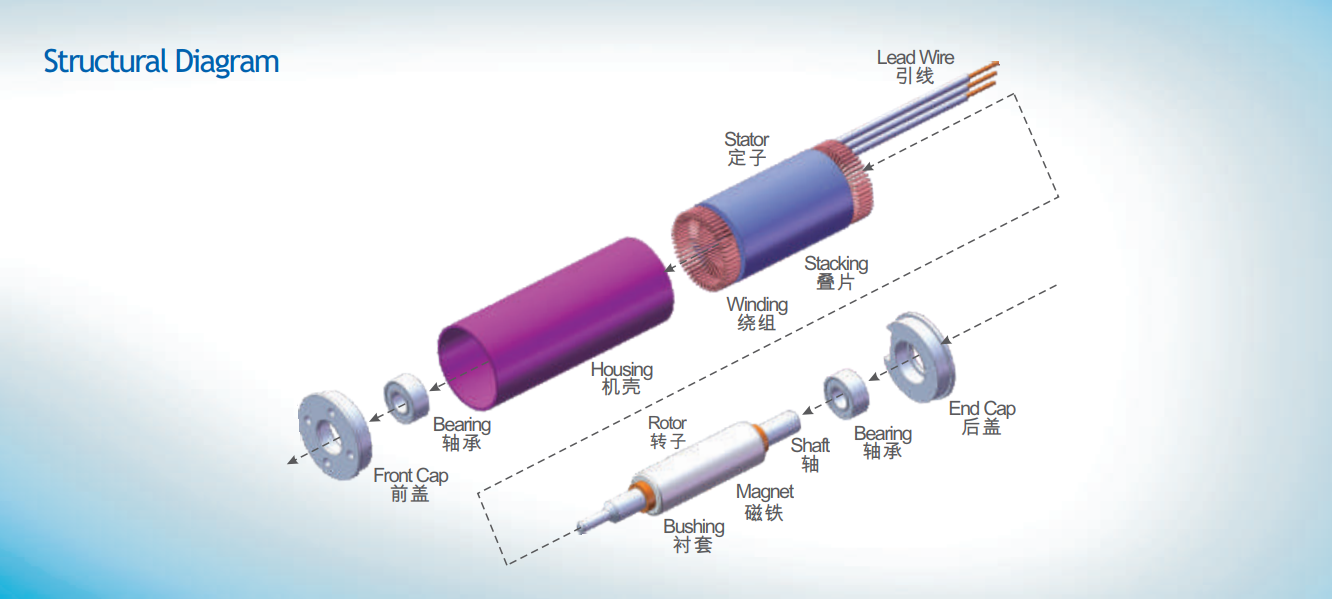

Brushless Coreless DC Motors

● Structure: Stator windings + highenergy permanent magnet rotor + advanced electronic commutation

● Wingfong Advantages:

○ Exceptional lifespan (no brush wear)

○ Sparkfree, lownoise, maintenancefree operation

○ Ultrahigh efficiency (up to 92%)

○ Superior dynamic performance and stability

○ Customizable for highspeed and hightorque applications

● Key Applications: Robotics, drones, medical devices, aerospace actuators, automotive electronics, and industrial servo systems.

Brushless-DC-micro-motor-exploded-structural-diagram-labeled-housing-stator-rotor-magnet-bearing-end-cap-spare-parts

Why Choose Wingfong Coreless Motors?

  • Reliable performance: High efficiency, ultralow inertia, extremely low cogging, consistent with industry high standards.
  • Custom engineering: Tailored windings, shafts, encoders, and gearboxes to match your specific application needs.
  • Rigorous quality: ISO 9001 certified, 100% tested for reliability and consistency.
  • Global support: Expert technical assistance and fast lead times to support your projects.
