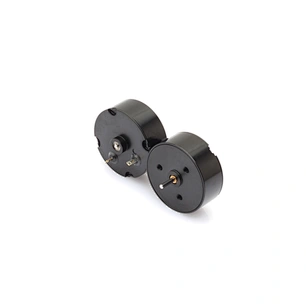

Model No: F2607
Hot Sale 2607 Brush Tattoo Machine Motor 12V DC Coreless Motor Replacement for Faulhaber coreless dc motor
Nominal voltage: 12V DC
No-load speed : 7000~14500 RPM
Stall torque: 4.2~17.1 mNm
Stall current: 0.29~2.22 A

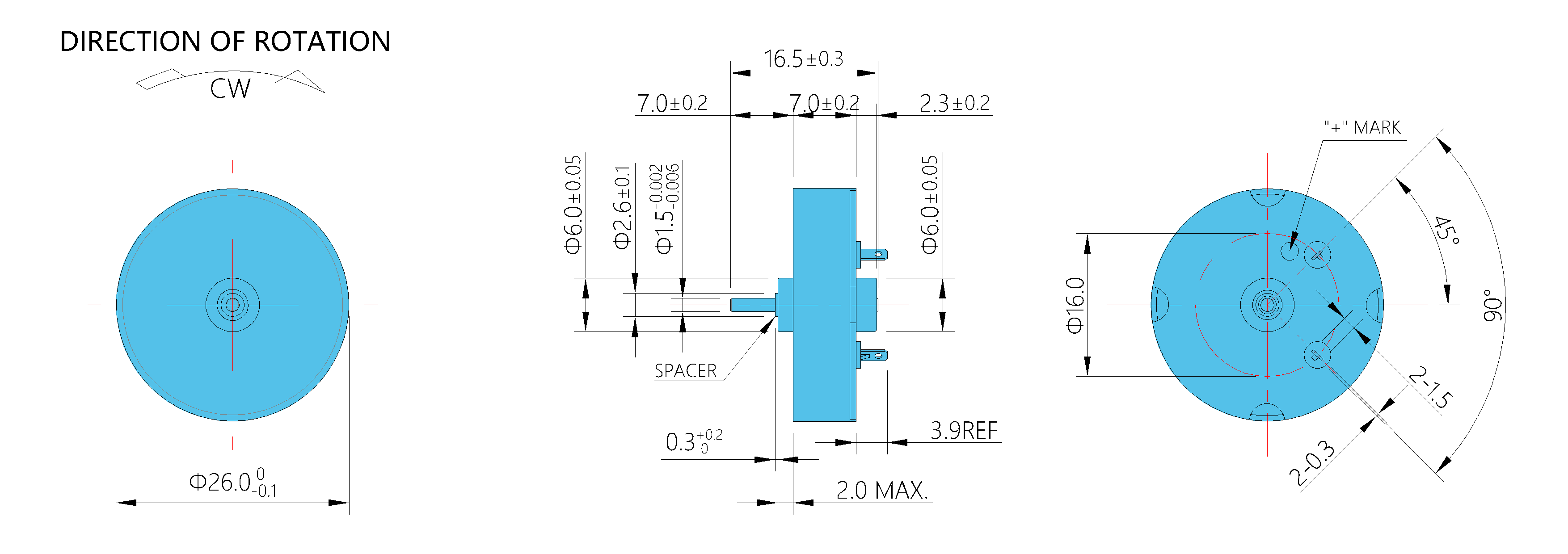

Diameter: 26.0 mm
Length: 7.0 mm
Typical Application:
Model Train
Tattoo Machine
No-load speed : 7000~14500 RPM
Stall torque: 4.2~17.1 mNm
Stall current: 0.29~2.22 A
Diameter: 26.0 mm
Length: 7.0 mm
Typical Application:
Model Train
Tattoo Machine
| 1 | Model | MDF2607 | -11 | -15 | -14 | -13 | -12 |
| 2 | Rated Voltage | V DC | 12 | 12 | 12 | 12 | 12 |
| 3 | No-Load Speed | RPM | 14500 | 14000 | 12500 | 11000 | 7000 |
| 4 | No-Load Current | mA | 25 | 30 | 25 | 20 | 12 |
| 5 | Stall Torque | mNm | 17 | 12 | 13 | 9.329 | 4.24 |
| 6 | Stall Current | A | 2.22 | 1.56 | 1.46 | 0.94 | 0.29 |
| 7 | Rated Speed | RPM | 13007 | 11927 | 10878 | 9485 | 5686 |
| 8 | Rated Torque | mNm | 1.824 | 1.735 | 1.705 | 1.372 | 0.882 |
| 9 | Rated Current | A | 0.259 | 0.244 | 0.215 | 0.156 | 0.07 |
| 10 | Rated Output Power | W | 2.48 | 2.17 | 1.94 | 1.36 | 0.53 |
| 11 | Maximun Efficiency | % | 80 | 74 | 75 | 73 | 63 |
| 12 | Maximun Output Power | W | 6.52 | 4.5 | 4.24 | 2.72 | 0.8 |
| 13 | Terminal Resistance | Ω | 5.4 | 7.7 | 8.2 | 12.7 | 41.5 |
| 14 | Current Constant | A/mNm | 0.129 | 0.123 | 0.111 | 0.099 | 0.065 |
| 15 | Torque Constant | mNm/A | 7.78 | 8.1 | 8.99 | 10.1 | 15.3 |
| 16 | Speed Constant | RPM/V | 1227 | 1179 | 1062 | 947 | 624 |
| 17 | Friction Torque | mNm | 0.195 | 0.243 | 0.225 | 0.202 | 0.184 |
| 18 | Speed/torque gradient | RPM/mNm | 852 | 1120 | 969 | 1192 | 1693 |
