Model No: 0614 Motor
6mm Driving 0614 DC Brushless Motor High Speed 59% Efficiency for Drone Toy Robot
Nominal voltage: 1.5~12.0 V DC
No-load speed : 7000~54000 rpm/min
Stall torque: 0.18~1.36 m.Nm
Stall current: 0.046~2.267 A

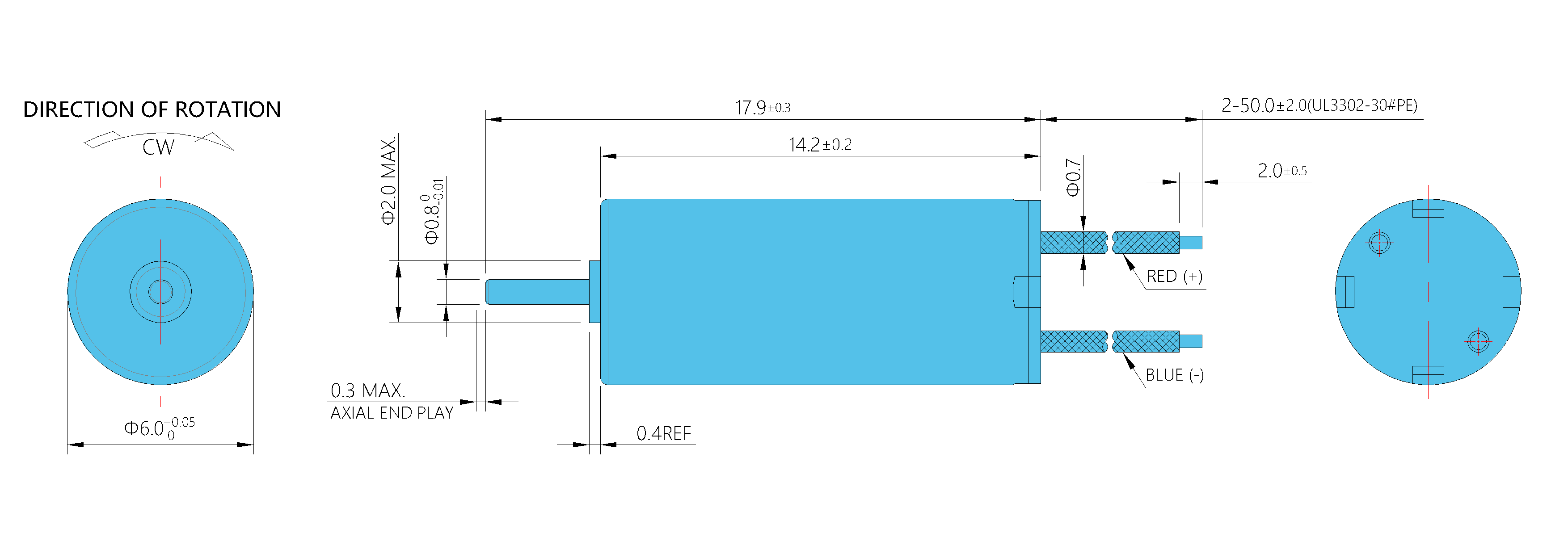

Diameter: 6.0 mm
Length: 14.2 mm
Typical Application:
Aircraft Rudder
Robot
Toy
No-load speed : 7000~54000 rpm/min
Stall torque: 0.18~1.36 m.Nm
Stall current: 0.046~2.267 A
Diameter: 6.0 mm
Length: 14.2 mm
Typical Application:
Aircraft Rudder
Robot
Toy
| 1 | Model | MD0614 | -1 | -17 | -4 | -10 | -5 |
| 2 | Rated Voltage | V DC | 1.5 | 3.7 | 4.2 | 5 | 12 |
| 3 | No-Load Speed | RPM | 21000 | 39000 | 42000 | 54000 | 25000 |
| 4 | No-Load Current | mA | 23 | 19 | 31 | 37 | 6 |
| 5 | Stall Torque | mNm | 0.599 | 0.676 | 1.142 | 1.264 | 0.506 |
| 6 | Stall Current | A | 0.938 | 0.787 | 1.254 | 1.493 | 0.124 |
| 7 | Rated Speed | RPM | 17948 | 33002 | 35212 | 45079 | 19632 |
| 8 | Rated Torque | mNm | 0.095 | 0.106 | 0.182 | 0.201 | 0.114 |
| 9 | Rated Current | A | 0.168 | 0.14 | 0.226 | 0.269 | 0.033 |
| 10 | Rated Output Power | W | 0.18 | 0.37 | 0.67 | 0.95 | 0.23 |
| 11 | Maximun Efficiency | % | 71 | 71 | 71 | 71 | 60 |
| 12 | Maximun Output Power | W | 0.33 | 0.69 | 1.25 | 1.77 | 0.34 |
| 13 | Terminal Resistance | Ω | 1.6 | 4.7 | 3.35 | 3.35 | 97 |
| 14 | Current Constant | A/mNm | 1.527 | 1.136 | 1.071 | 1.152 | 0.233 |
| 15 | Torque Constant | mNm/A | 0.655 | 0.88 | 0.934 | 0.868 | 4.3 |
| 16 | Speed Constant | RPM/V | 14578 | 10846 | 10224 | 10999 | 2221 |
| 17 | Friction Torque | mNm | 0.015 | 0.017 | 0.029 | 0.032 | 0.026 |
| 18 | Speed/torque gradient | RPM/mNm | 35609 | 57893 | 36672 | 42438 | 50097 |
