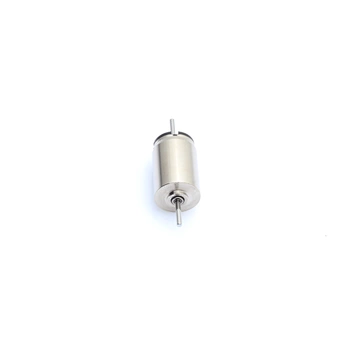

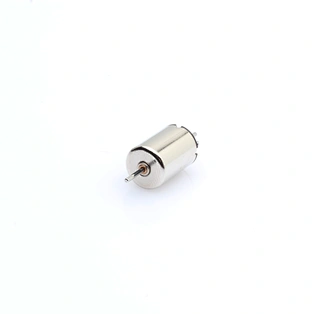

Model No: MD1524D

1524D Dual Shaft Coreless Brushed DC Motor High Precision Motor for Servo Robot Industrial Equipment Medical Devices ROHS

Nominal voltage: 3 ~ 12 V DC
No-load speed : 3100 ~ 21000 RPM
Stall torque: 3 ~ 19.8 mNm
Stall current: 0.16 ~ 3.64 A

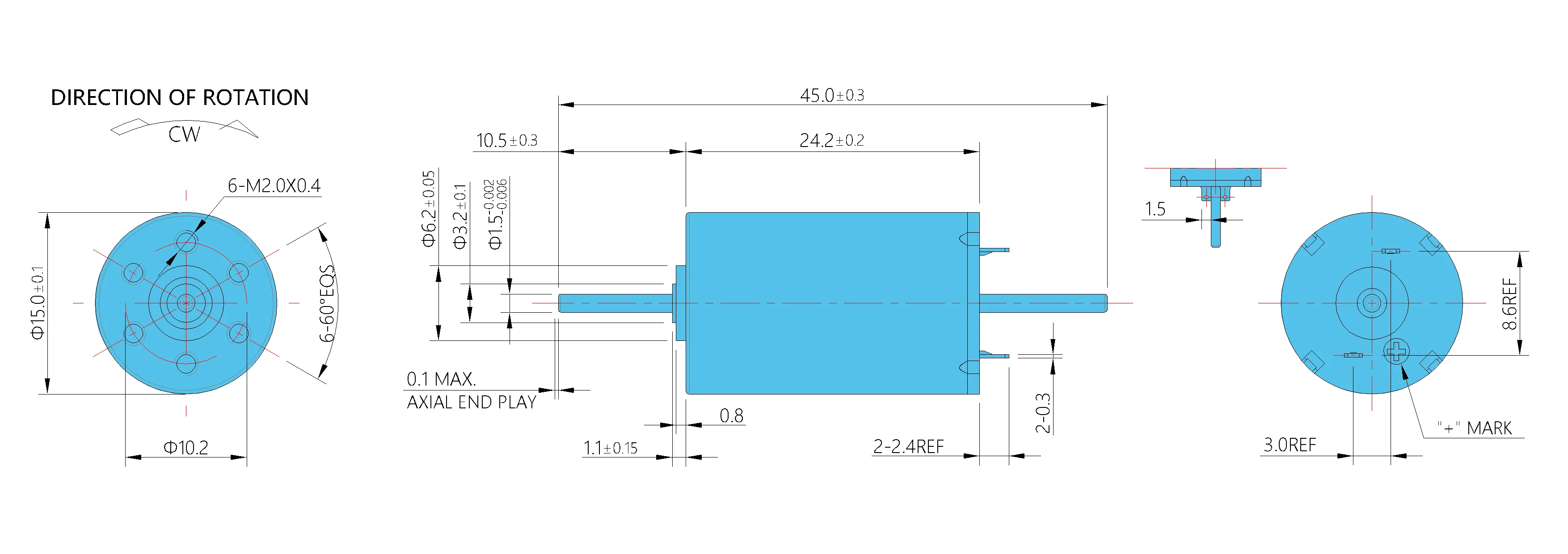

Diameter: 15.0 mm
Length: 24.2 mm

Typical Application:
Aircraft Rudder
Robot
Industrial Equipment
Medical Device

Contact Now

1	Model	MD1524D	-04	-05	-08	-03	-06
2	Rated Voltage	V DC	3	6	12	12	12
3	No-Load Speed	RPM	6000	3100	16000	12000	8000
4	No-Load Current	mA	19	3	32	18	8
5	Stall Torque	mNm	5.985	2.968	15.219	11.742	7.676
6	Stall Current	A	1.277	0.164	2.182	1.25	0.55
7	Rated Speed	RPM	5201	2634	14004	10418	7011
8	Rated Torque	mNm	0.736	0.405	1.857	1.419	0.932
9	Rated Current	A	0.174	0.025	0.294	0.167	0.074
10	Rated Output Power	W	0.4	0.11	2.72	1.55	0.68
11	Maximun Efficiency	%	77	75	77	77	77
12	Maximun Output Power	W	0.93	0.24	6.35	3.64	1.6
13	Terminal Resistance	Ω	2.35	36.6	5.5	9.6	21.8
14	Current Constant	A/mNm	0.21	0.054	0.141	0.105	0.071
15	Torque Constant	mNm/A	4.759	18.442	7.079	9.531	14.151
16	Speed Constant	RPM/V	2007	518	1349	1002	675
17	Friction Torque	mNm	0.09	0.055	0.227	0.172	0.113
18	Speed/torque gradient	RPM/mNm	991	1028	1048	1009	1040

dc coreless motor 12 volt dc motor dual shaft dc coreless motor 12 volt dc motor dual shaft dc coreless motor 12 volt dc motor dual shaft dc coreless motor 12 volt dc motor dual shaft dc coreless motor 12 volt dc motor dual shaft dc coreless motor 12 volt dc motor dual shaft dc coreless motor 12 volt dc motor dual shaft dc coreless motor 12 volt dc motor dual shaft dc coreless motor 12 volt dc motor dual shaft

DC Coreless Motor Customization Options：

Motor Housing: Diameter, Length
Motor Shaft: Diameter, Length, Output Direction, Quantity
Bearing Type: Ball Bearings / Sleeve Bearings
Number of Commutator Segments: 3 / 5 / 7 / 9 / 11 / 13
Brush Type: Precious Metal Brushes / Carbon Brushes
Power Connection: Lead Wires / Connector / Terminal Pins / Other
Mounting Type: Shell / Flange / Other
Position Sensor: Hall / Magnetoelectric / Photoelectric
Gear Reducer: Planetary Gearbox
