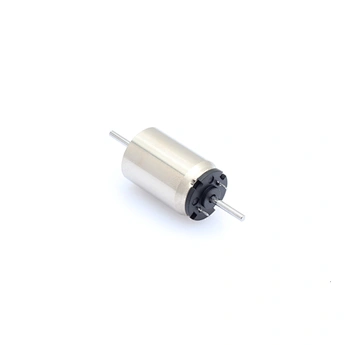

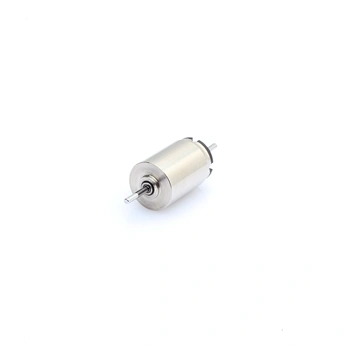

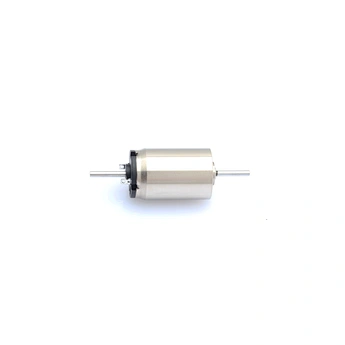

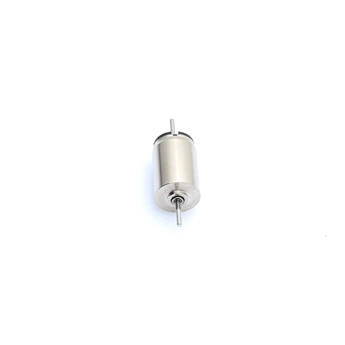

Model No: MD1320D

1320D Dual Shaft Coreless Brushed DC Motor High Efficiency Micro Motor for Robot Industrial Equipment Medical Devices

Nominal voltage: 3 ~ 12 V DC
No-load speed : 3100 ~ 21000 RPM
Stall torque: 3 ~ 19.8 mNm
Stall current: 0.16 ~ 3.64 A

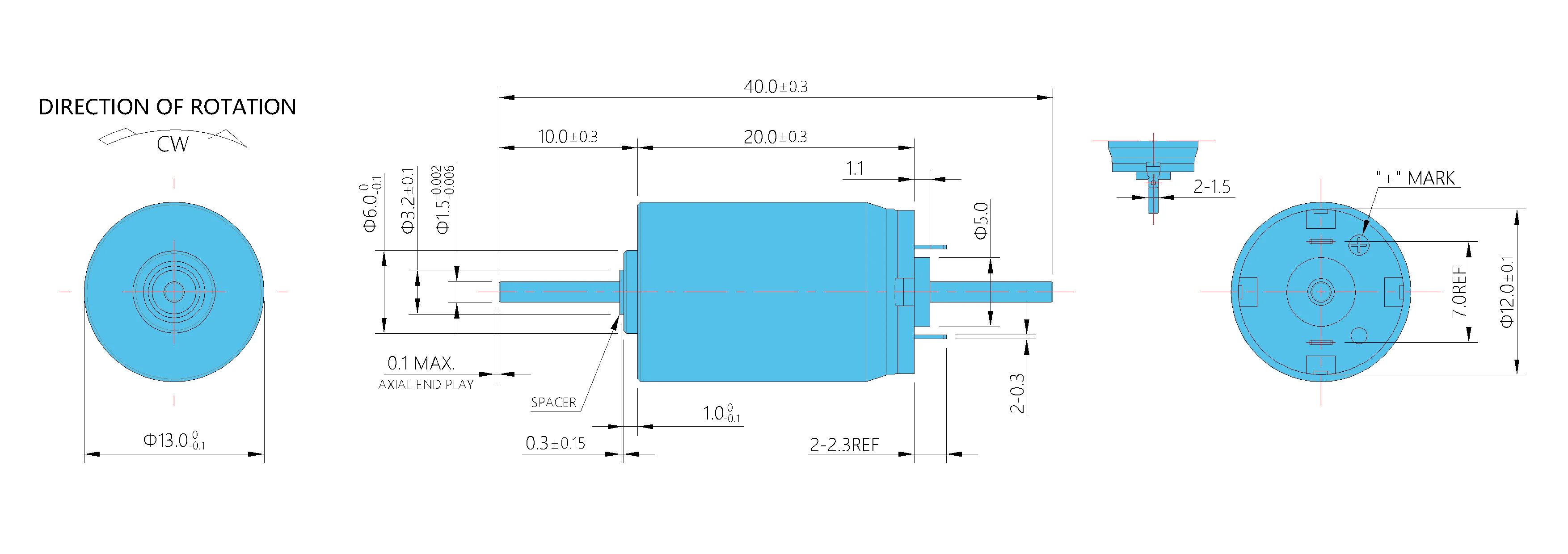

Diameter: 13.0 mm
Length: 20.0 mm

Typical Application:
Robot
Industrial Equipment
Medical Device

Contact Now

1	Model	MD1320D	-02	-06	-01	-05	-03
2	Rated Voltage	V DC	6	9	12	12	12
3	No-Load Speed	RPM	12000	12000	14000	12000	8000
4	No-Load Current	mA	25	16	16	13	6
5	Stall Torque	mNm	5.966	5.609	6.708	5.986	4.163
6	Stall Current	A	1.304	0.818	0.822	0.667	0.311
7	Rated Speed	RPM	10366	10348	11598	10540	7075
8	Rated Torque	mNm	0.834	0.792	0.945	0.844	0.584
9	Rated Current	A	0.204	0.129	0.13	0.105	0.049
10	Rated Output Power	W	0.91	0.86	1.15	0.93	0.43
11	Maximun Efficiency	%	74	74	74	74	74
12	Maximun Output Power	W	1.88	1.77	2.37	1.92	0.9
13	Terminal Resistance	Ω	4.6	11	14.6	18	38.6
14	Current Constant	A/mNm	0.214	0.143	0.12	0.109	0.073
15	Torque Constant	mNm/A	4.664	6.993	8.323	9.157	13.655
16	Speed Constant	RPM/V	2048	1366	1147	1043	699
17	Friction Torque	mNm	0.117	0.112	0.133	0.119	0.082
18	Speed/torque gradient	RPM/mNm	2020	2148	2013	2050	1977

dc coreless motor double shaft brushed motor dc coreless motor double shaft brushed motor dc coreless motor double shaft brushed motor dc coreless motor double shaft brushed motor dc coreless motor double shaft brushed motor dc coreless motor double shaft brushed motor dc coreless motor double shaft brushed motor dc coreless motor double shaft brushed motor

DC Coreless Motor Customization Options：

Motor Housing: Diameter, Length
Motor Shaft: Diameter, Length, Output Direction, Quantity
Bearing Type: Ball Bearings / Sleeve Bearings
Number of Commutator Segments: 3 / 5 / 7 / 9 / 11 / 13
Brush Type: Precious Metal Brushes / Carbon Brushes
Power Connection: Lead Wires / Connector / Terminal Pins / Other
Mounting Type: Shell / Flange / Other
Position Sensor: Hall / Magnetoelectric / Photoelectric
Gear Reducer: Planetary Gearbox
