Model No: MD1015D

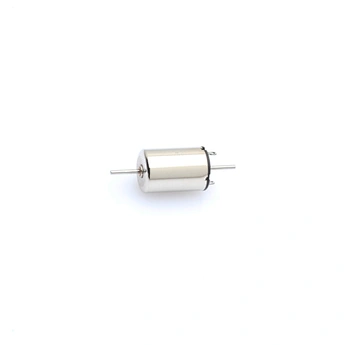

1015D Dual Shaft Coreless Brushed DC Motor for Model Train Toy and Speed Reducer Permanent Magnet ROHS Certified
Nominal voltage: 6 ~ 12 V DC
No-load speed : 11000 ~ 19000 RPM
Stall torque: 1.3 ~ 2.4 mNm
Stall current: 0.15 ~ 0.41 A

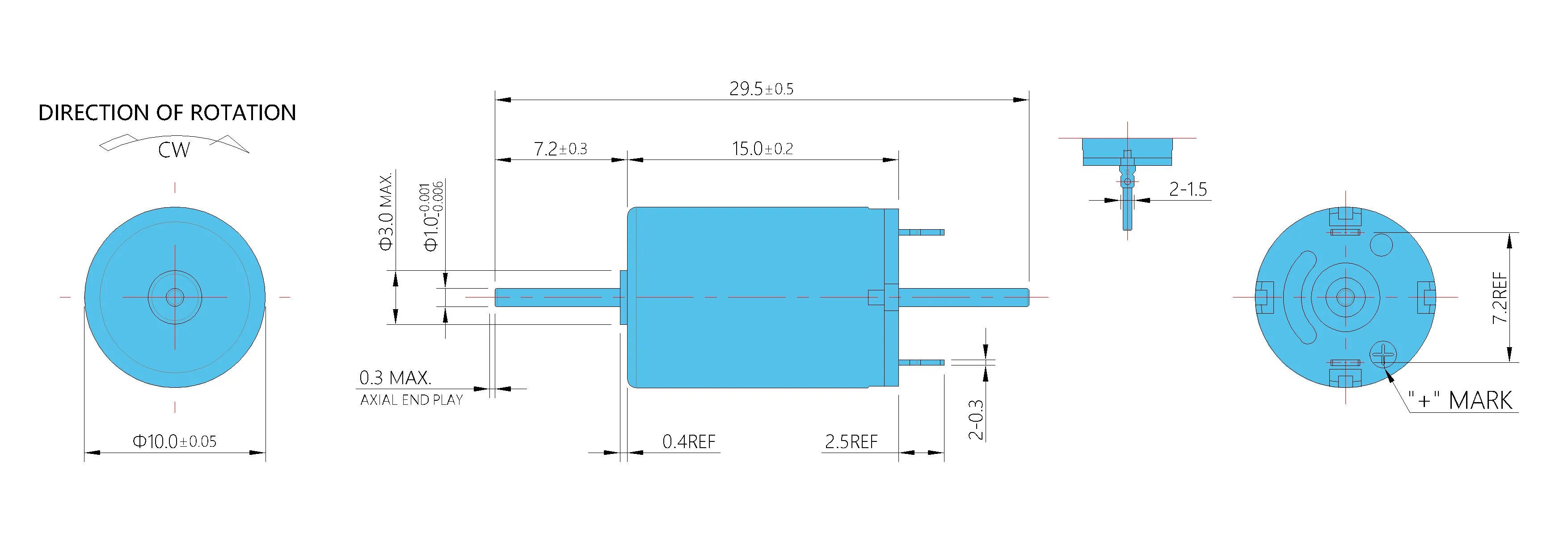

Diameter: 10.0 mm
Length: 15.0 mm
Typical Application:
Toys
Model Train
Speed Reducer
No-load speed : 11000 ~ 19000 RPM
Stall torque: 1.3 ~ 2.4 mNm
Stall current: 0.15 ~ 0.41 A
Diameter: 10.0 mm
Length: 15.0 mm
Typical Application:
Toys
Model Train
Speed Reducer
| 1 | Model | MD1015D | -16 | -10 | -09 | -14 | -15 |
| 2 | Rated Voltage | V DC | 6 | 12 | 12 | 12 | 12 |
| 3 | No-Load Speed | RPM | 12000 | 19000 | 16000 | 14000 | 11000 |
| 4 | No-Load Current | mA | 5 | 7 | 5 | 4 | 4 |
| 5 | Stall Torque | mNm | 1.339 | 2.386 | 1.915 | 1.936 | 1.51 |
| 6 | Stall Current | A | 0.29 | 0.41 | 0.274 | 0.253 | 0.153 |
| 7 | Rated Speed | RPM | 10393 | 16495 | 13646 | 12643 | 9200 |
| 8 | Rated Torque | mNm | 0.177 | 0.315 | 0.261 | 0.246 | 0.247 |
| 9 | Rated Current | A | 0.043 | 0.06 | 0.042 | 0.036 | 0.028 |
| 10 | Rated Output Power | W | 0.19 | 0.54 | 0.37 | 0.33 | 0.24 |
| 11 | Maximun Efficiency | % | 75 | 75 | 75 | 76 | 70 |
| 12 | Maximun Output Power | W | 0.42 | 1.19 | 0.79 | 0.73 | 0.43 |
| 13 | Terminal Resistance | Ω | 20.7 | 29.3 | 43.8 | 47.5 | 78.5 |
| 14 | Current Constant | A/mNm | 0.213 | 0.169 | 0.14 | 0.128 | 0.099 |
| 15 | Torque Constant | mNm/A | 4.7 | 5.928 | 7.12 | 7.788 | 10.141 |
| 16 | Speed Constant | RPM/V | 2032 | 1611 | 1341 | 1226 | 942 |
| 17 | Friction Torque | mNm | 0.024 | 0.041 | 0.036 | 0.031 | 0.041 |
| 18 | Speed/torque gradient | RPM/mNm | 8948 | 7962 | 8250 | 7478 | 7289 |
