Model No: 0612 Motor
Permanent Magnet 6*12mm 0612 DC Coreless Motor for Robot Toy
Nominal voltage: 1.2~12 V DC
No-load speed : 11000~65000 RPM
Stall torque: 0.17~1.33 mNm
Stall current: 0.07~3.125 A

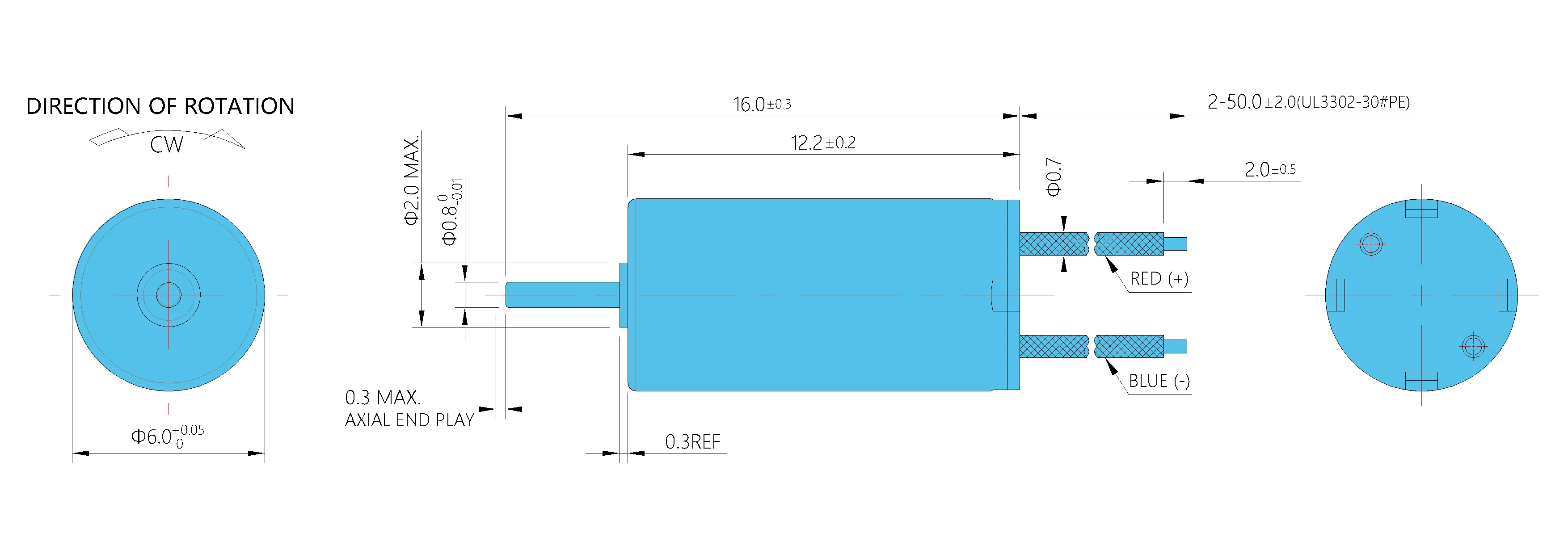

Diameter: 6.0 mm
Length: 12.2 mm
Typical Application:
Aircraft Rudder
Robot
Toys
No-load speed : 11000~65000 RPM
Stall torque: 0.17~1.33 mNm
Stall current: 0.07~3.125 A
Diameter: 6.0 mm
Length: 12.2 mm
Typical Application:
Aircraft Rudder
Robot
Toys
| 1 | Model | MD0612 | -6 | -14 | -66 | -60 | -45 |
| 2 | Rated Voltage | V DC | 1.5 | 3.7 | 5 | 7.4 | 12 |
| 3 | No-Load Speed | RPM | 53000 | 53000 | 54000 | 57000 | 39000 |
| 4 | No-Load Current | mA | 156 | 43 | 31 | 25 | 7 |
| 5 | Stall Torque | mNm | 0.709 | 0.98 | 0.976 | 0.891 | 0.554 |
| 6 | Stall Current | A | 2.941 | 1.542 | 1.163 | 0.763 | 0.201 |
| 7 | Rated Speed | RPM | 40683 | 43607 | 44980 | 46198 | 31374 |
| 8 | Rated Torque | mNm | 0.168 | 0.166 | 0.162 | 0.164 | 0.105 |
| 9 | Rated Current | A | 0.815 | 0.297 | 0.218 | 0.161 | 0.044 |
| 10 | Rated Output Power | W | 0.71 | 0.76 | 0.76 | 0.79 | 0.35 |
| 11 | Maximun Efficiency | % | 58 | 69 | 70 | 67 | 66 |
| 12 | Maximun Output Power | W | 0.99 | 1.35 | 1.38 | 1.32 | 0.56 |
| 13 | Terminal Resistance | Ω | 0.51 | 2.4 | 4.3 | 9.7 | 59.7 |
| 14 | Current Constant | A/mNm | 3.929 | 1.529 | 1.16 | 0.828 | 0.35 |
| 15 | Torque Constant | mNm/A | 0.255 | 0.654 | 0.862 | 1.207 | 2.856 |
| 16 | Speed Constant | RPM/V | 37521 | 14596 | 11075 | 7911 | 3344 |
| 17 | Friction Torque | mNm | 0.04 | 0.028 | 0.027 | 0.03 | 0.02 |
| 18 | Speed/torque gradient | RPM/mNm | 75187 | 53546 | 55234 | 63565 | 69911 |
