Model No: MD 2554D
2554D 24V Coreless Permanent Magnet DC Brushed Micro Motor-High Efficiency 87% ROHS Certified Smart Home Compatible
Nominal voltage: 24 ~ 24 V DC
No-load speed : 5200 ~ 5200 RPM
Stall torque: 152 ~ 152 mNm
Stall current: 3.5 ~ 3.5 A

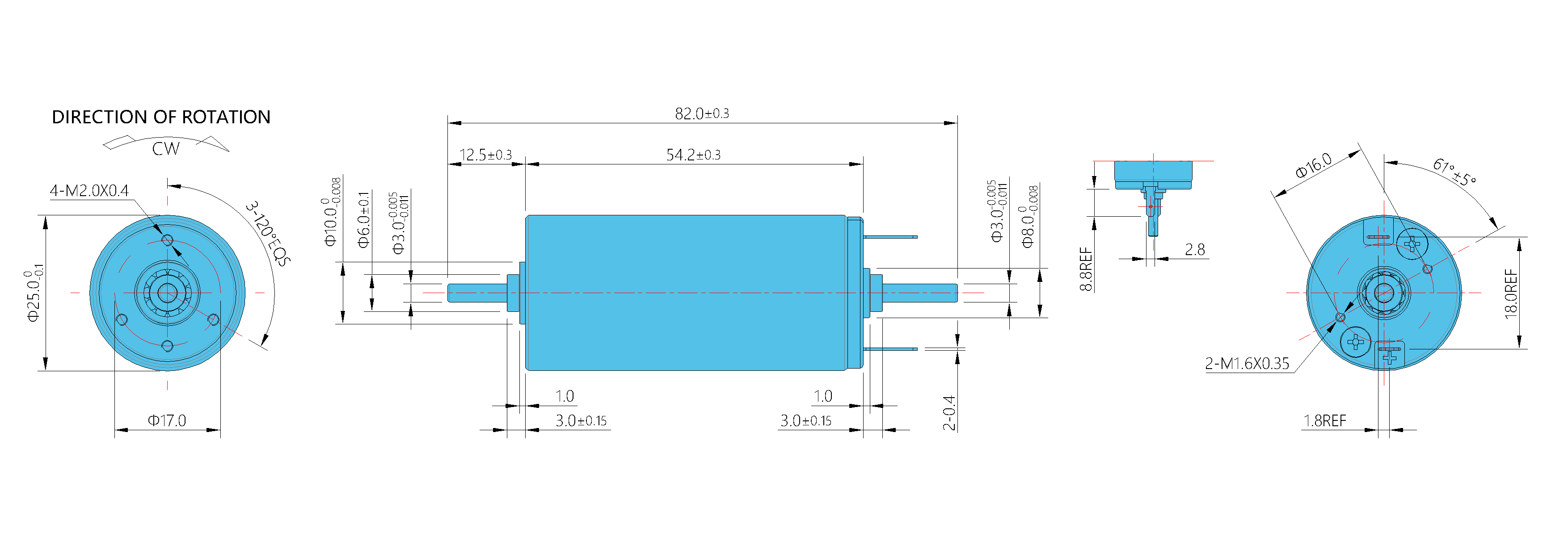

Diameter: 25.0 mm
Length: 54.2 mm
Typical Application:
Aircraft Rudder
Industrial Equipment
Aerospace
No-load speed : 5200 ~ 5200 RPM
Stall torque: 152 ~ 152 mNm
Stall current: 3.5 ~ 3.5 A
Diameter: 25.0 mm
Length: 54.2 mm
Typical Application:
Aircraft Rudder
Industrial Equipment
Aerospace
| 1 | Model | MD2554D | -01 |
| 2 | Rated Voltage | V DC | 24 |
| 3 | No-Load Speed | RPM | 5200 |
| 4 | No-Load Current | mA | 15 |
| 5 | Stall Torque | mNm | 151.98 |
| 6 | Stall Current | A | 3.478 |
| 7 | Rated Speed | RPM | 4858 |
| 8 | Rated Torque | mNm | 10.002 |
| 9 | Rated Current | A | 0.243 |
| 10 | Rated Output Power | W | 5.09 |
| 11 | Maximun Efficiency | % | 87 |
| 12 | Maximun Output Power | W | 20.69 |
| 13 | Terminal Resistance | Ω | 6.9 |
| 14 | Current Constant | A/mNm | 0.023 |
| 15 | Torque Constant | mNm/A | 43.884 |
| 16 | Speed Constant | RPM/V | 218 |
| 17 | Friction Torque | mNm | 0.658 |
| 18 | Speed/torque gradient | RPM/mNm | 34 |
