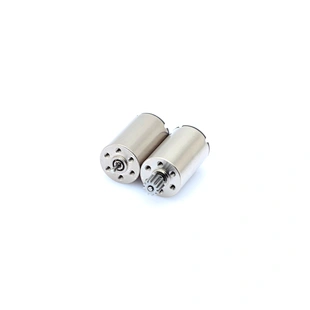

Model No: MD1524

1524 12V Coreless Permanent Magnet DC Brushed Motor High Efficiency ROHS Certified Home Appliance & Electric Motorcycle Use

Nominal voltage: 12.0~12.0 V DC
No-load speed : 12000~21000 RPM
Stall torque: 12~20 mNm
Stall current: 1.3~3.6 A

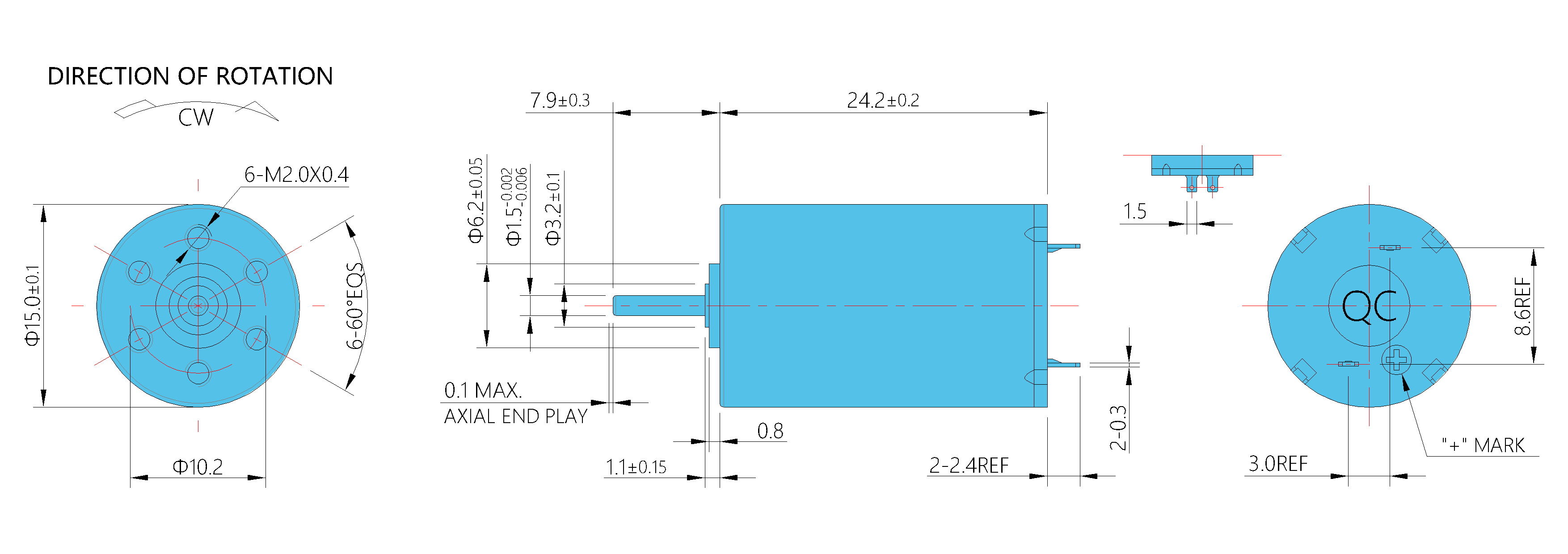

Diameter: 15.0 mm
Length: 24.2 mm

Typical Application:
Aircraft Rudder
Robot
Industrial Equipment
Medical Device

Contact Now

1	Model	MD1524	-04	-05	-06	-07	-08
2	Rated Voltage	V DC	3	6	9	12	15
3	No-Load Speed	RPM	6000	6000	6000	6000	6000
4	No-Load Current	mA	11	5	4	3	2
5	Stall Torque	mNm	6.332	6.143	6.034	6.263	5.913
6	Stall Current	A	1.364	0.652	0.431	0.333	0.252
7	Rated Speed	RPM	5523	5463	5437	5419	5463
8	Rated Torque	mNm	0.571	0.54	0.584	0.597	0.529
9	Rated Current	A	0.133	0.062	0.045	0.034	0.024
10	Rated Output Power	W	0.33	0.31	0.33	0.34	0.3
11	Maximun Efficiency	%	83	83	82	82	83
12	Maximun Output Power	W	1.01	0.96	0.95	0.98	0.93
13	Terminal Resistance	Ω	2.2	9.2	20.9	36	59.6
14	Current Constant	A/mNm	0.214	0.105	0.071	0.053	0.042
15	Torque Constant	mNm/A	4.682	9.492	14.144	18.958	23.684
16	Speed Constant	RPM/V	2040	1006	675	504	403
17	Friction Torque	mNm	0.051	0.047	0.057	0.057	0.047
18	Speed/torque gradient	RPM/mNm	959	975	998	956	1015

DC brushlessmotorDCbrushless motorDC brushless motorDC brushless motorDC brushless motorDC brushless motorDC brushless motor
dc coreless motordc coreless motordc coreless motordc coreless motordc coreless motordc coreless motordc coreless motordc coreless motor
flat dc motorflat dc motorflat dc motorflat dc motorflat dc motorflat dc motorflat dc motorflat dc motor

DC Coreless Motor Customization Options：

Motor Housing: Diameter, Length
Motor Shaft: Diameter, Length, Output Direction, Quantity
Bearing Type: Ball Bearings / Sleeve Bearings
Number of Commutator Segments: 3 / 5 / 7 / 9 / 11 / 13
Brush Type: Precious Metal Brushes / Carbon Brushes
Power Connection: Lead Wires / Connector / Terminal Pins / Other
Mounting Type: Shell / Flange / Other
Position Sensor: Hall / Magnetoelectric / Photoelectric
Gear Reducer: Planetary Gearbox
