Model No: 0617

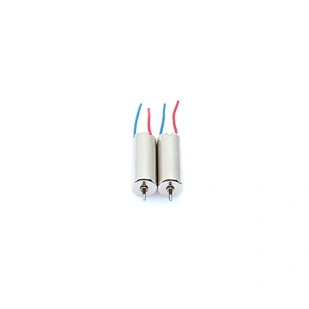

0617 3.7V Coreless Permanent Magnet DC Brushed High Speed 6mm Fan Motor for Electric Bicycle 72% Efficiency ROHS Certified
Nominal voltage: 3.7~12.0 V DC
No-load speed : 22000~57000 RPM
Stall torque: 0.9~2.59mNm
Stall current: 0.18~4.35A

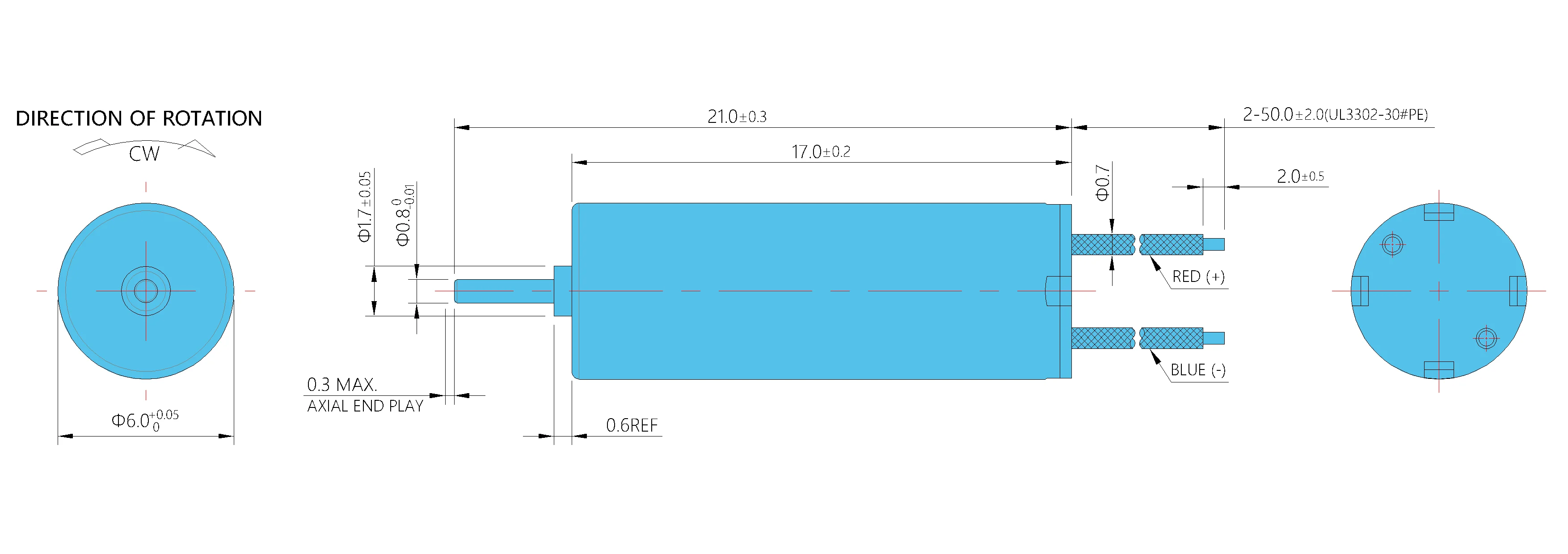

Diameter: 6 mm
Length: 17 mm
Typical Application:
Toys
Mini Drone
No-load speed : 22000~57000 RPM
Stall torque: 0.9~2.59mNm
Stall current: 0.18~4.35A
Diameter: 6 mm
Length: 17 mm
Typical Application:
Toys
Mini Drone
| 1 | Model | MD0617 | -01 | -02 | -03 | -04 |
| 2 | Rated Voltage | V DC | 3.7 | 3.7 | 3.7 | 12 |
| 3 | No-Load Speed | RPM | 57000 | 52000 | 47000 | 22000 |
| 4 | No-Load Current | mA | 100 | 85 | 70 | 3 |
| 5 | Stall Torque | mNm | 2.576 | 2.585 | 2.214 | 0.902 |
| 6 | Stall Current | A | 4.353 | 3.936 | 3.083 | 0.179 |
| 7 | Rated Speed | RPM | 48260 | 43849 | 39837 | 19129 |
| 8 | Rated Torque | mNm | 0.395 | 0.384 | 0.337 | 0.118 |
| 9 | Rated Current | A | 0.752 | 0.657 | 0.529 | 0.026 |
| 10 | Rated Output Power | W | 2 | 1.76 | 1.41 | 0.24 |
| 11 | Maximun Efficiency | % | 72 | 73 | 72 | 76 |
| 12 | Maximun Output Power | W | 3.84 | 3.49 | 2.72 | 0.52 |
| 13 | Terminal Resistance | Ω | 0.85 | 0.94 | 1.2 | 67 |
| 14 | Current Constant | A/mNm | 1.651 | 1.49 | 1.361 | 0.195 |
| 15 | Torque Constant | mNm/A | 0.606 | 0.671 | 0.735 | 5.121 |
| 16 | Speed Constant | RPM/V | 15768 | 14226 | 12998 | 1865 |
| 17 | Friction Torque | mNm | 0.061 | 0.057 | 0.051 | 0.015 |
| 18 | Speed/torque gradient | RPM/mNm | 22130 | 19922 | 21230 | 24393 |
