Model No: MD2225

2225 22mm 2225 3~24V DC Coreless Motor Rotary Tattoo Machine Smart Home Appliance Tattoo Pen Long Life Brush

Nominal voltage: 3 ~ 24 V DC
No-load speed : 6000 ~ 11000 RPM
Stall torque: 15 ~ 30 mNm
Stall current: 0.41 ~3.33 A

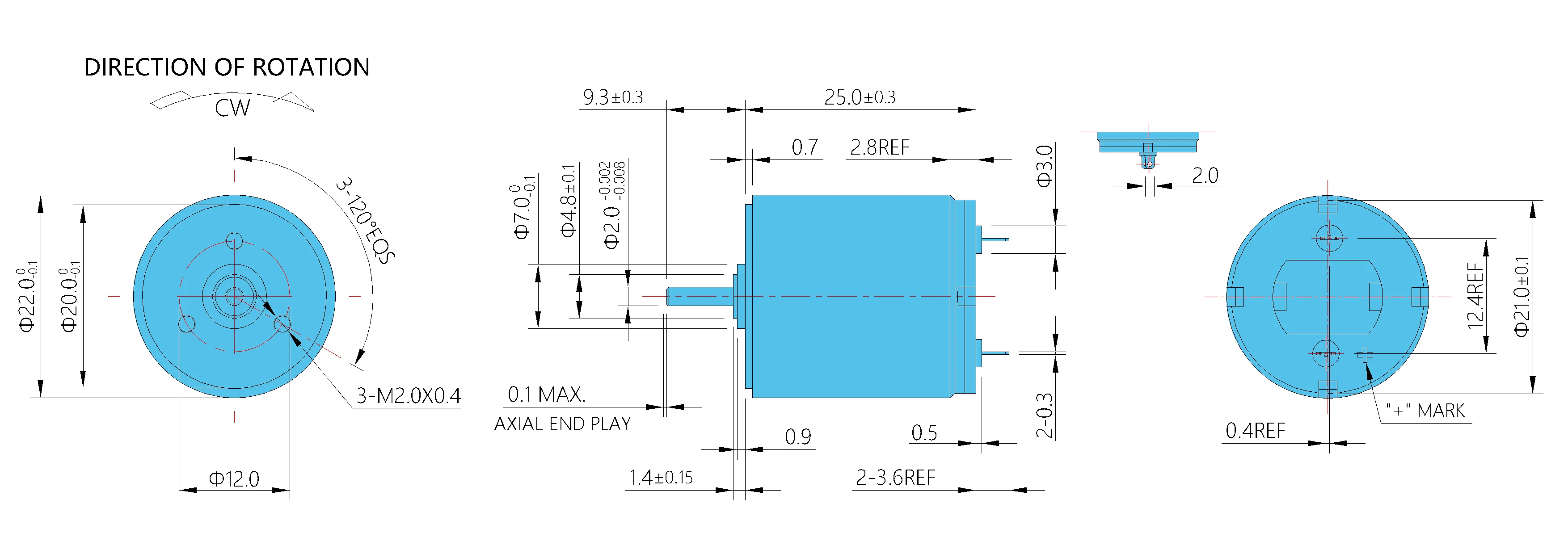

Diameter: 22.0mm
Length: 25.0mm

Typical Application:
Industrial Equipment
Nail Gun
Tattoo Machine
Contact Now
1ModelMD2225-03-01-04-05-06
2Rated VoltageV DC612121824
3No-Load SpeedRPM600011000600060006000
4No-Load CurrentmA324816118
5Stall TorquemNm16.70130.10516.78516.11814.882
6Stall CurrentA1.8182.9850.9090.5840.406
7Rated SpeedRPM52149594518851695158
8Rated TorquemNm2.2353.8492.2472.2322.11
9Rated CurrentA0.2710.4230.1360.090.064
10Rated Output PowerW1.223.871.221.211.14
11Maximun Efficiency%7576757474
12Maximun Output PowerW2.638.672.632.532.34
13Terminal ResistanceΩ3.34.0213.230.859.1
14Current ConstantA/mNm0.1070.0980.0530.0360.027
15Torque ConstantmNm/A9.3510.2518.79428.10937.382
16Speed ConstantRPM/V1021932508340255
17Friction TorquemNm0.2990.4920.3010.3090.299
18Speed/torque gradientRPM/mNm360365357372404
