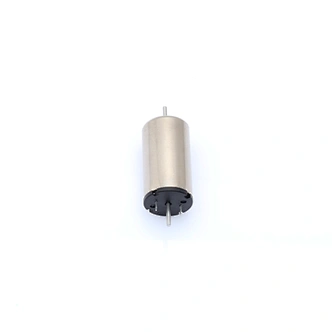

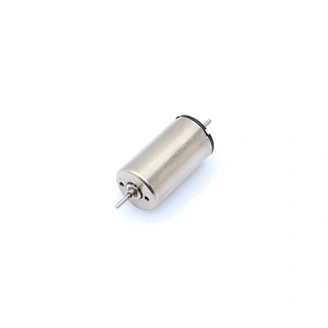

Model No: MD 1630D
1630D Coreless Permanent Magnet DC Brushed Micro Motor High Efficiency CCW for Robot Applications
Nominal voltage: 3.0~24.0 V DC
No-load speed : 8000~19000 RPM
Stall torque: 18~36 mNm
Stall current: 0.64~9.09 A

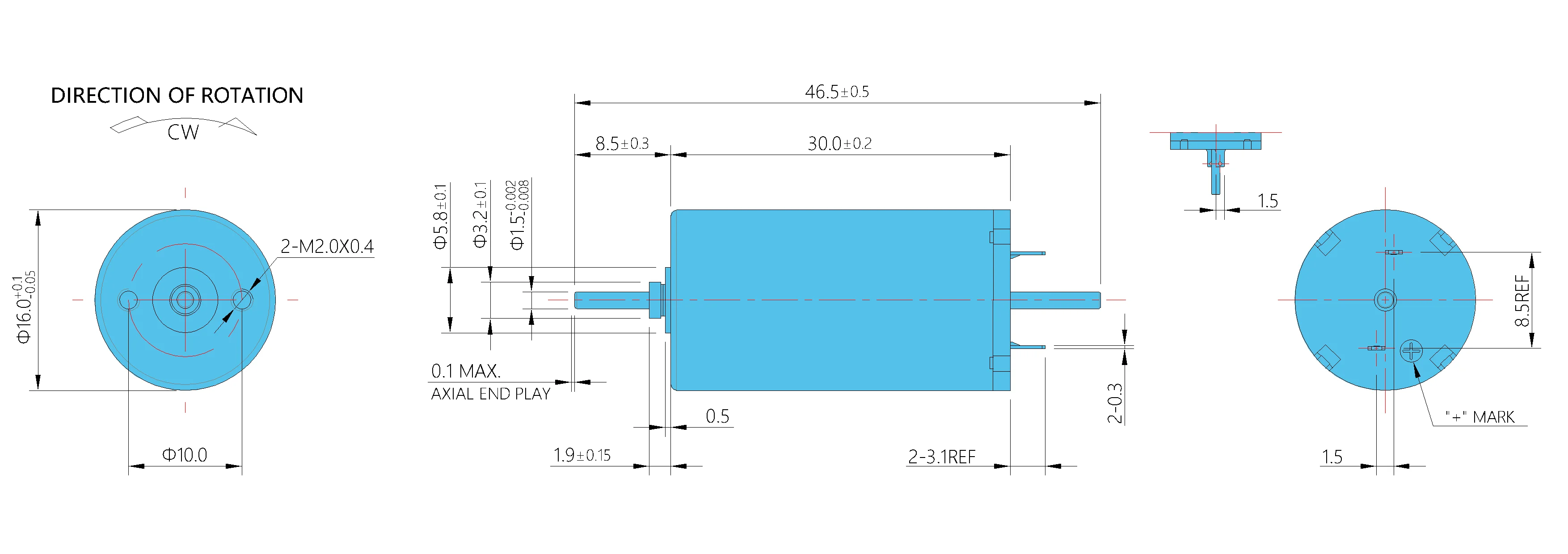

Diameter: 16.0 mm
Length: 30.0 mm
Typical Application:
Model Train
Toy
Speed Reducer
No-load speed : 8000~19000 RPM
Stall torque: 18~36 mNm
Stall current: 0.64~9.09 A
Diameter: 16.0 mm
Length: 30.0 mm
Typical Application:
Model Train
Toy
Speed Reducer
| 1 | Model | MD1630D | -01 | -16 | -13 | -14 | -15 |
| 2 | Rated Voltage | V DC | 3 | 7.4 | 12 | 12 | 12 |
| 3 | No-Load Speed | RPM | 12000 | 19000 | 16000 | 15000 | 12000 |
| 4 | No-Load Current | mA | 95 | 60 | 40 | 30 | 20 |
| 5 | Stall Torque | mNm | 21.252 | 32.374 | 36.454 | 35.502 | 25.663 |
| 6 | Stall Current | A | 9.091 | 8.916 | 5.217 | 4.8 | 2.727 |
| 7 | Rated Speed | RPM | 10767 | 17620 | 14730 | 14087 | 10969 |
| 8 | Rated Torque | mNm | 2.184 | 2.665 | 3.204 | 2.816 | 2.206 |
| 9 | Rated Current | A | 1.019 | 0.789 | 0.495 | 0.408 | 0.253 |
| 10 | Rated Output Power | W | 2.46 | 4.92 | 4.94 | 4.15 | 2.53 |
| 11 | Maximun Efficiency | % | 81 | 84 | 83 | 85 | 84 |
| 12 | Maximun Output Power | W | 6.68 | 16.27 | 15.41 | 14.22 | 8.06 |
| 13 | Terminal Resistance | Ω | 0.33 | 0.83 | 2.3 | 2.5 | 4.4 |
| 14 | Current Constant | A/mNm | 0.423 | 0.274 | 0.142 | 0.134 | 0.105 |
| 15 | Torque Constant | mNm/A | 2.362 | 3.656 | 7.041 | 7.443 | 9.479 |
| 16 | Speed Constant | RPM/V | 4042 | 2612 | 1356 | 1283 | 1007 |
| 17 | Friction Torque | mNm | 0.224 | 0.219 | 0.282 | 0.223 | 0.19 |
| 18 | Speed/torque gradient | RPM/mNm | 565 | 593 | 443 | 431 | 468 |
