Model No: MD0408

4mm 0408 DC Coreless Motor Permanent Magnet Construction

Nominal voltage: 1.0~3.7 V DC
No-load speed : 24000~99000 rpm/min
Stall torque: 0.029~0.153 mNm
Stall current: 0.063~0.652 A

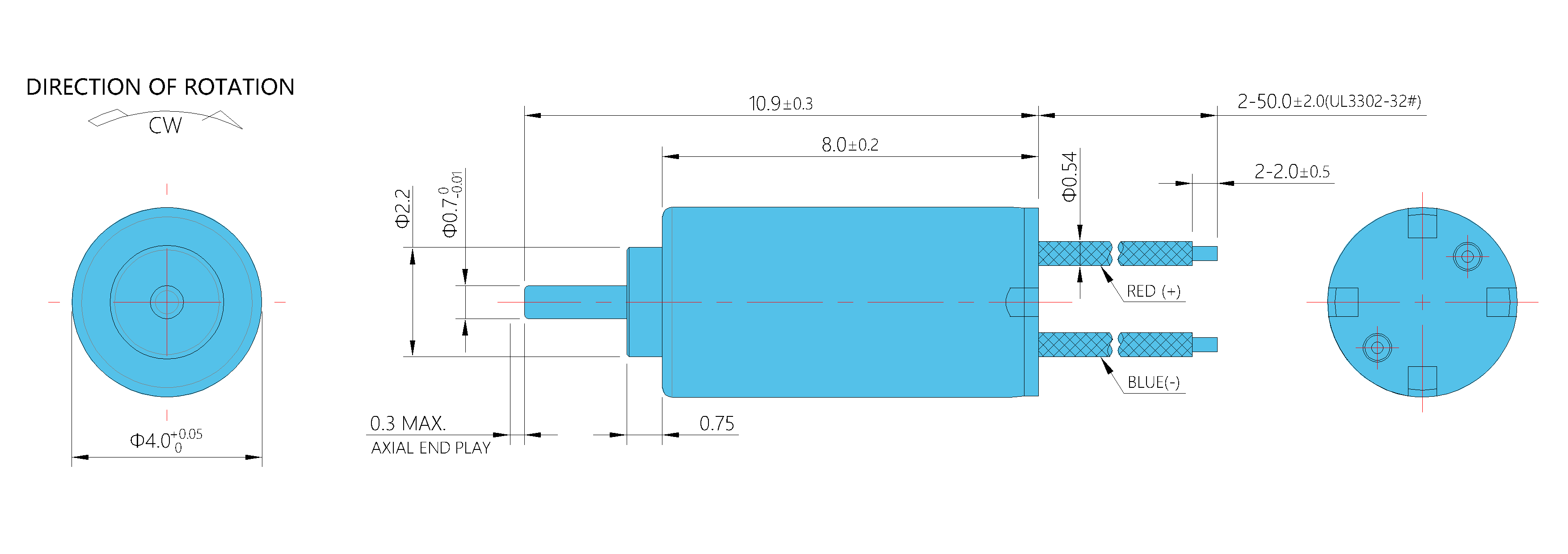

Diameter: 4.0 mm
Length: 8.0 mm

Typical Application:
Camera Module
Aircraft Rudder
PTZ

Contact Now

1	Model	MD0408	-007	-016	-010	-003	-011
2	Rated Voltage	V DC	3	3.7	3.7	3.6	3
3	No-Load Speed	RPM	78000	60000	60000	51000	40000
4	No-Load Current	mA	120	60	40	40	20
5	Stall Torque	mNm	0.097	0.084	0.043	0.048	0.034
6	Stall Current	A	0.38	0.195	0.109	0.106	0.063
7	Rated Speed	RPM	43398	35412	31529	27363	23501
8	Rated Current	A	0.204	0.096	0.062	0.06	0.031
9	Rated Torque	mNm	0.043	0.034	0.02	0.022	0.014
10	Rated Output Power	W	0.2	0.13	0.07	0.06	0.03
11	Maximun Efficiency	%	32	36	29	30	36
12	Maximun Output Power	W	0.2	0.13	0.07	0.06	0.04
13	Terminal Resistance	Ω	7.9	19	34	34	47.3
14	Current Constant	A/mNm	3.278	1.983	2.081	1.822	1.611
15	Torque Constant	mNm/A	0.305	0.504	0.481	0.549	0.621
16	Speed Constant	RPM/V	31304	18939	19868	17400	15386
17	Friction Torque	mNm	0.019	0.014	0.01	0.01	0.006
18	Speed/torque gradient	RPM/mNm	810691	713698	1405388	1077985	1172566

DC Coreless MotorDC Coreless MotorDC Coreless MotorDC Coreless MotorDC Coreless MotorDC Coreless MotorDC Coreless MotorDC Coreless Motor

0408 coreless motor0408 coreless motor0408 coreless motor0408 coreless motor0408 coreless motor0408 coreless motor0408 coreless motor0408 coreless motor
micro motor 3vmicro motor 3vmicro motor 3vmicro motor 3vvmicro motor 3vmicro motor 3vmicro motor 3vmicro motor 3vmicro motor 3v

DC Coreless Motor Customization Options：

Motor Housing: Diameter, Length
Motor Shaft: Diameter, Length, Output Direction, Quantity
Bearing Type: Ball Bearings / Sleeve Bearings
Number of Commutator Segments: 3 / 5 / 7 / 9 / 11 / 13
Brush Type: Precious Metal Brushes / Carbon Brushes
Power Connection: Lead Wires / Connector / Terminal Pins / Other
Mounting Type: Shell / Flange / Other
Position Sensor: Hall / Magnetoelectric / Photoelectric
Gear Reducer: Planetary Gearbox
