Model No: 0514

0514 5mm DC Brushed Coreless Motor Micro Toy Mini Drone

Nominal voltage: 3.7 V DC
No-load speed : 59000 RPM
Stall torque: 0.68 mNm
Stall current: 1.2 A

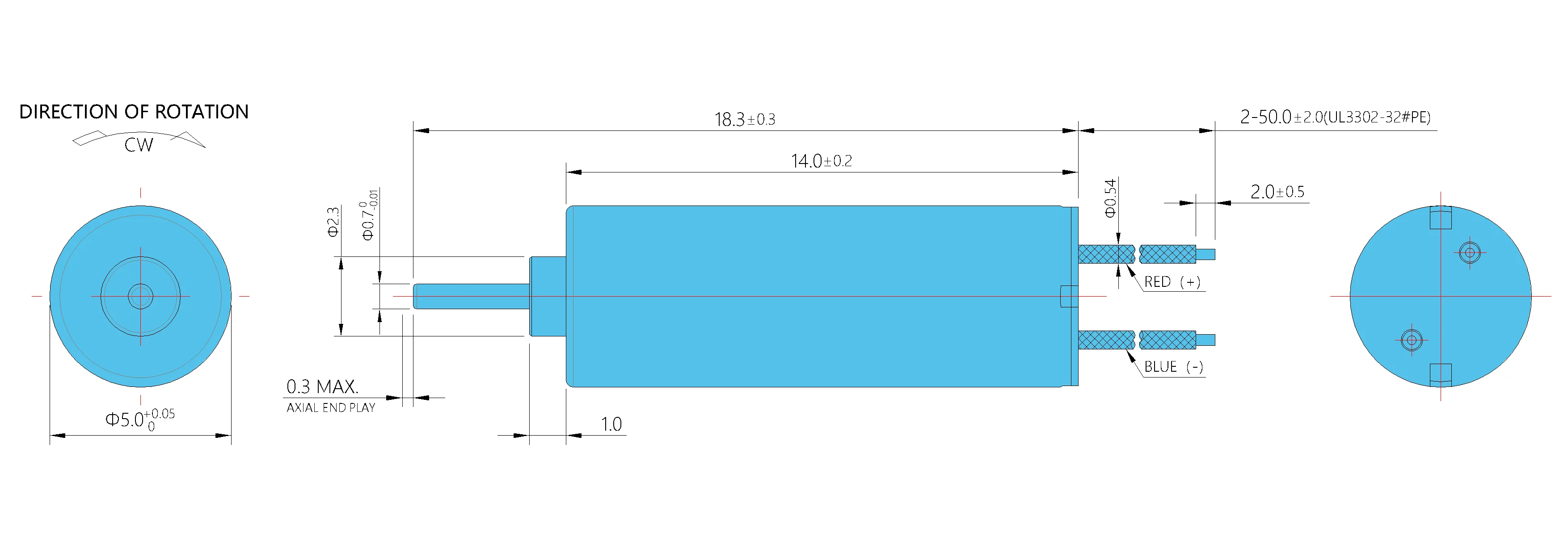

Diameter: 5.0 mm
Length: 14.0 mm

Typical Application:
Aircraft Rudder
Mini Drones
Toys
Contact Now
1ModelMD0514-001
2Rated VoltageV DC3.7
3No-Load SpeedRPM59000
4No-Load CurrentmA45
5Stall TorquemNm0.684
6Stall CurrentA1.233
7Rated SpeedRPM47622
8Rated TorquemNm0.133
9Rated CurrentA0.276
10Rated Output PowerW0.66
11Maximun Efficiency%65
12Maximun Output PowerW1.06
13Terminal ResistanceΩ3
14Current ConstantA/mNm1.737
15Torque ConstantmNm/A0.576
16Speed ConstantRPM/V16586
17Friction TorquemNm0.026
18Speed/torque gradientRPM/mNm86421
