Model No: MD1020

Dual Shaft 1020 6V Coreless DC Brushed Motor High Efficiency and High Torque Micro Motor for Model Trains

Nominal voltage: 6.0~12.0 V DC
No-load speed : 8000~30000 RPM
Stall torque: 2.5~9.2mNm
Stall current: 0.18~2.31 A

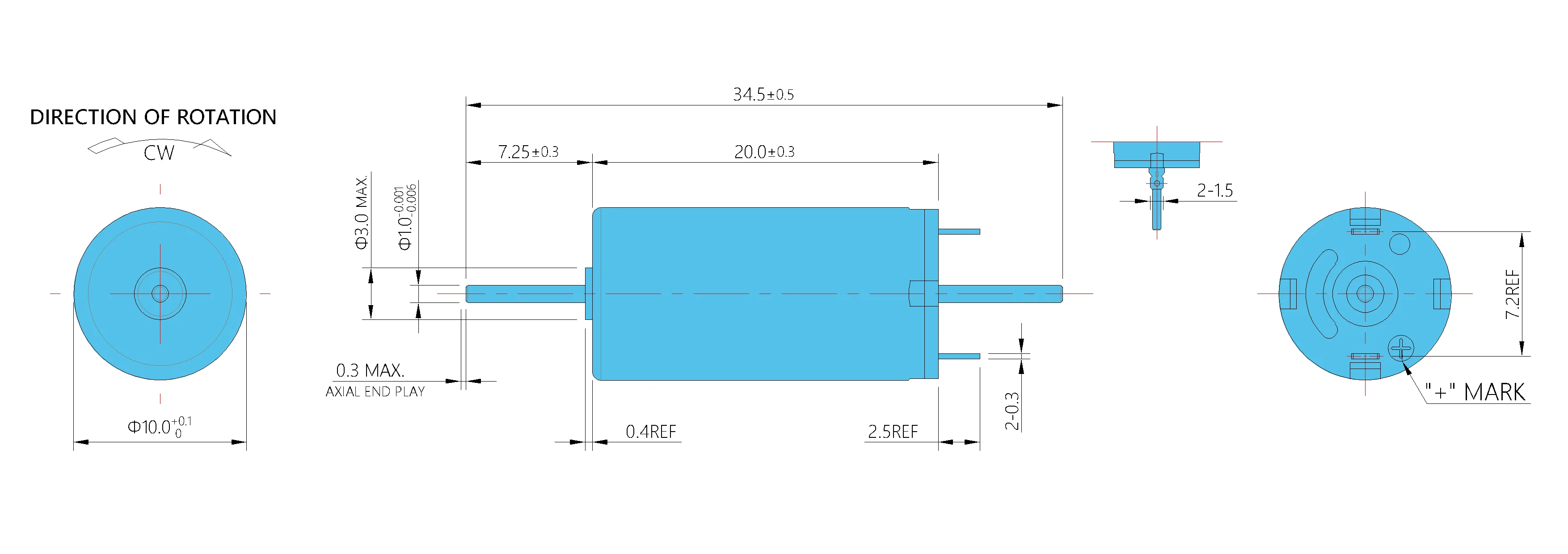

Diameter: 10 mm
Length: 20 mm

Typical Application:
Toys
Aircraft Rudder
Soccer Drone
RC Aircraft
Contact Now
1ModelMD1020D-03-29-24-22-12
2Rated VoltageV DC66121212
3No-Load SpeedRPM190001000017000140008000
4No-Load CurrentmA2071042
5Stall TorquemNm5.883.1665.5094.1842.462
6Stall CurrentA20.5830.8330.5220.175
7Rated SpeedRPM17180915415055128337123
8Rated TorquemNm0.5910.3490.6070.3680.264
9Rated CurrentA0.2190.070.1010.050.021
10Rated Output PowerW1.060.330.960.490.2
11Maximun Efficiency%8179798380
12Maximun Output PowerW2.940.852.441.540.51
13Terminal ResistanceΩ310.314.42368.4
14Current ConstantA/mNm0.3370.1820.1490.1240.07
15Torque ConstantmNm/A2.975.5026.6918.08214.196
16Speed ConstantRPM/V3215173614271182673
17Friction TorquemNm0.0590.0390.0670.0320.028
18Speed/torque gradientRPM/mNm32483249307133633241
