Model No: MD1620

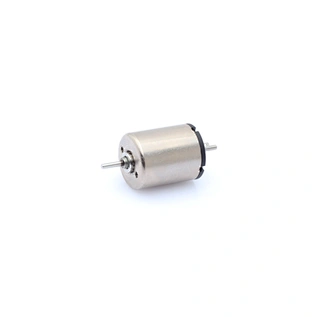

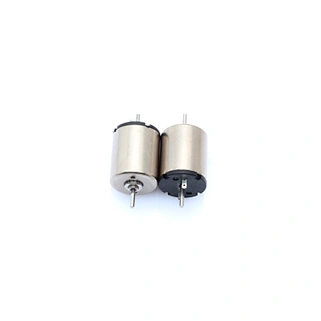

1620D 12V Coreless Permanent Magnet DC Brushed Motor Shell Mounting for Robot Servo Door Lock CCW
Nominal voltage: 12.0~12.0 V DC
No-load speed : 15000~19000 RPM
Stall torque: 8~9.2 mNm
Stall current: 1.1~1.6 A

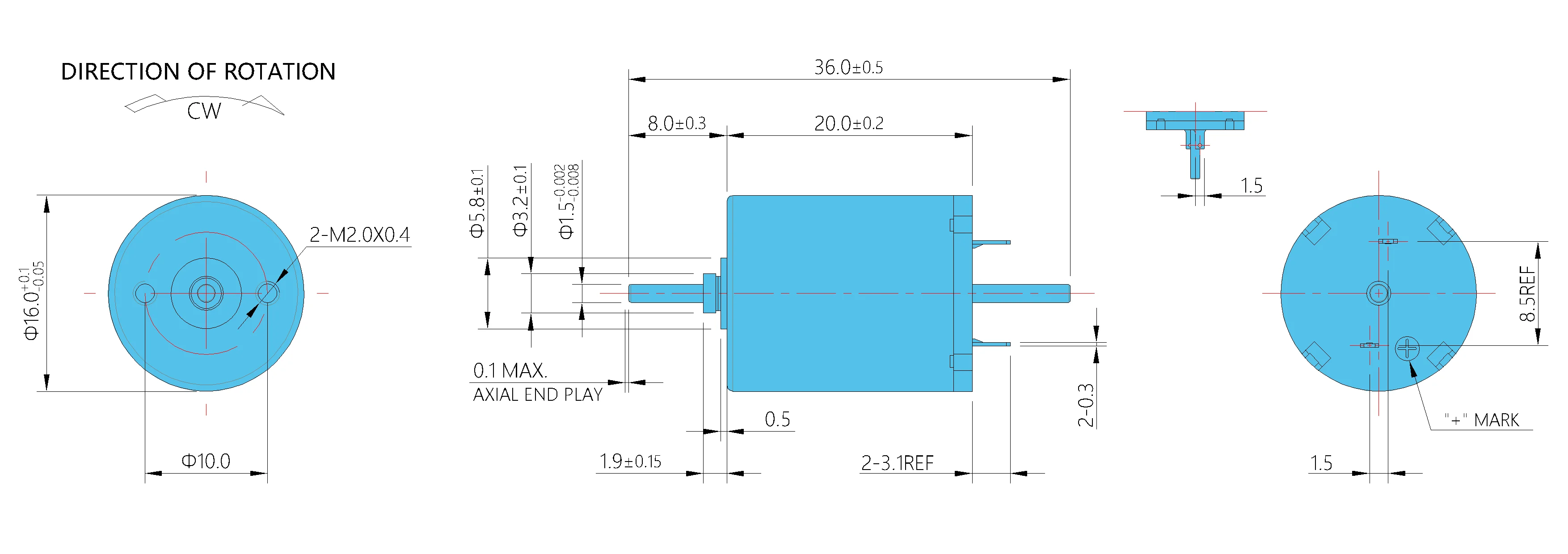

Diameter: 16.0 mm
Length: 20.0 mm
Typical Application:
Model Train
Toy
Speed Reducer
No-load speed : 15000~19000 RPM
Stall torque: 8~9.2 mNm
Stall current: 1.1~1.6 A
Diameter: 16.0 mm
Length: 20.0 mm
Typical Application:
Model Train
Toy
Speed Reducer
| 1 | Model | MD1620D | -06 | -05 |
| 2 | Rated Voltage | V DC | 12 | 12 |
| 3 | No-Load Speed | RPM | 19000 | 15000 |
| 4 | No-Load Current | mA | 45 | 27 |
| 5 | Stall Torque | mNm | 9.236 | 8.044 |
| 6 | Stall Current | A | 1.644 | 1.091 |
| 7 | Rated Speed | RPM | 16056 | 12425 |
| 8 | Rated Torque | mNm | 1.55 | 1.282 |
| 9 | Rated Current | A | 0.313 | 0.196 |
| 10 | Rated Output Power | W | 2.61 | 1.67 |
| 11 | Maximun Efficiency | % | 69 | 71 |
| 12 | Maximun Output Power | W | 4.67 | 3.11 |
| 13 | Terminal Resistance | Ω | 7.3 | 11 |
| 14 | Current Constant | A/mNm | 0.173 | 0.132 |
| 15 | Torque Constant | mNm/A | 5.777 | 7.561 |
| 16 | Speed Constant | RPM/V | 1653 | 1263 |
| 17 | Friction Torque | mNm | 0.26 | 0.204 |
| 18 | Speed/torque gradient | RPM/mNm | 2089 | 1837 |
