Model No: MD0410

0410 Micro DC Brush Coreless Motor Mini Drone Toy Motor

Nominal voltage: 3.7 V DC
No-load speed : 23000~78000 RPM
Stall torque: 0.052~0.184 mNm
Stall current: 0.043~0.481 A
Diameter: 4.0 mm
Length: 10.0 mm

Typical Application:
Camera Module
Aircraft Rudder
PTZ

Contact Now

1	Model	MD0410	-001	-002	-003	-004	-005
2	Rated Voltage	V DC	3.7	3.7	3.7	3.7	3.7
3	No-Load Speed	RPM	78000	65000	43000	39000	28000
4	No-Load Current	mA	80	80	40	40	20
5	Stall Torque	mNm	0.184	0.142	0.082	0.059	0.065
6	Stall Current	A	0.481	0.308	0.13	0.084	0.062
7	Rated Speed	RPM	55324	46323	26907	24914	18472
8	Rated Torque	mNm	0.054	0.041	0.031	0.022	0.021
9	Rated Current	A	0.168	0.107	0.059	0.037	0.024
10	Rated Output Power	W	0.31	0.2	0.09	0.06	0.04
11	Maximun Efficiency	%	50	51	40	41	46
12	Maximun Output Power	W	0.38	0.24	0.09	0.06	0.05
13	Terminal Resistance	Ω	7.7	12	28.5	43.8	60
14	Current Constant	A/mNm	2.405	2.004	1.394	1.262	0.862
15	Torque Constant	mNm/A	0.416	0.499	0.717	0.792	1.16
16	Speed Constant	RPM/V	22966	19136	13309	12055	8234
17	Friction Torque	mNm	0.016	0.012	0.012	0.008	0.007
18	Speed/torque gradient	RPM/mNm	425313	460163	528683	666577	425944

dc coreless motordc coreless motordc coreless motordc coreless motordc coreless motordc coreless motor

4mm motor4mm motor4mm motor4mm motor4mm motor4mm motor
mini toy motormini toy motormini toy motormini toy motormini toy motormini toy motormini toy motor

DC Coreless Motor Customization Options：

Motor Housing: Diameter, Length
Motor Shaft: Diameter, Length, Output Direction, Quantity
Bearing Type: Ball Bearings / Sleeve Bearings
Number of Commutator Segments: 3 / 5 / 7 / 9 / 11 / 13
Brush Type: Precious Metal Brushes / Carbon Brushes
Power Connection: Lead Wires / Connector / Terminal Pins / Other
Mounting Type: Shell / Flange / Other
Position Sensor: Hall / Magnetoelectric / Photoelectric
Gear Reducer: Planetary Gearbox

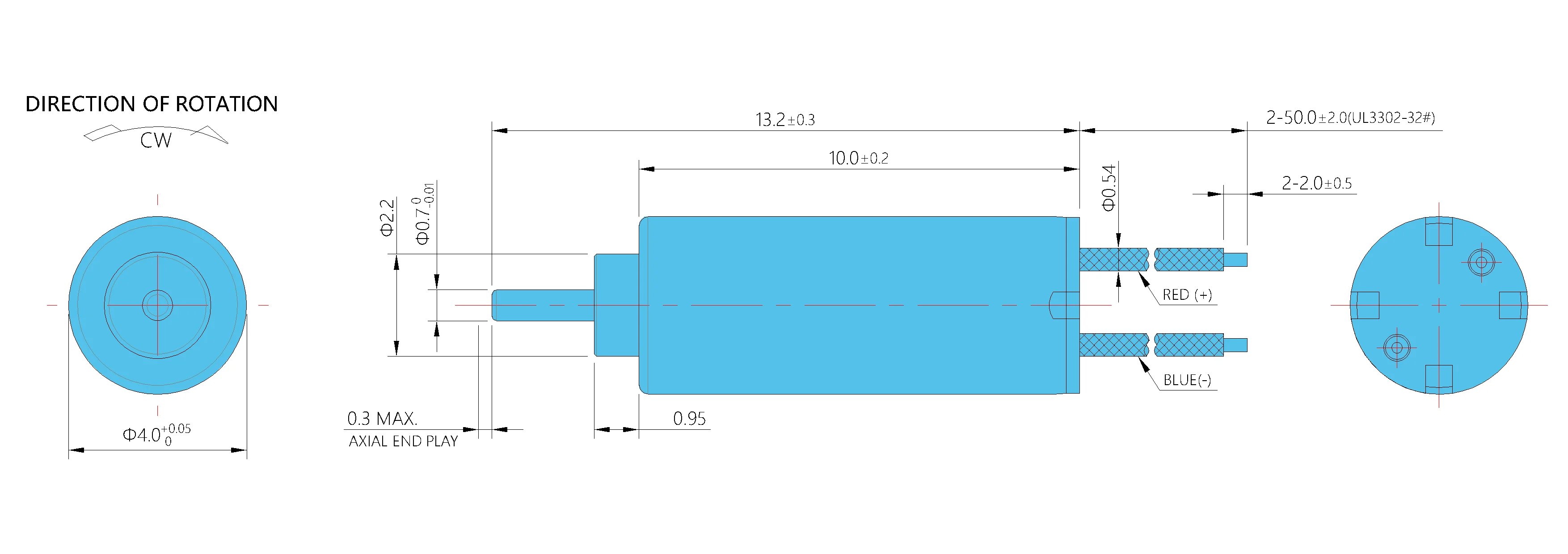

dc-coreless-motor-4mm-motor-mini-toy-motor.
