Model No: MD0710
MD0710 Coreless Brushed DC Permanent Magnet Micro Motor 7mm Frame High Efficiency for Drone & Electric Bicycle
Nominal voltage: 1.5 ~ 6 V DC
No-load speed : 17000 ~ 38000 RPM
Stall torque: 0.26 ~ 0.67 mNm
Stall current: 0.099 ~ 1 A

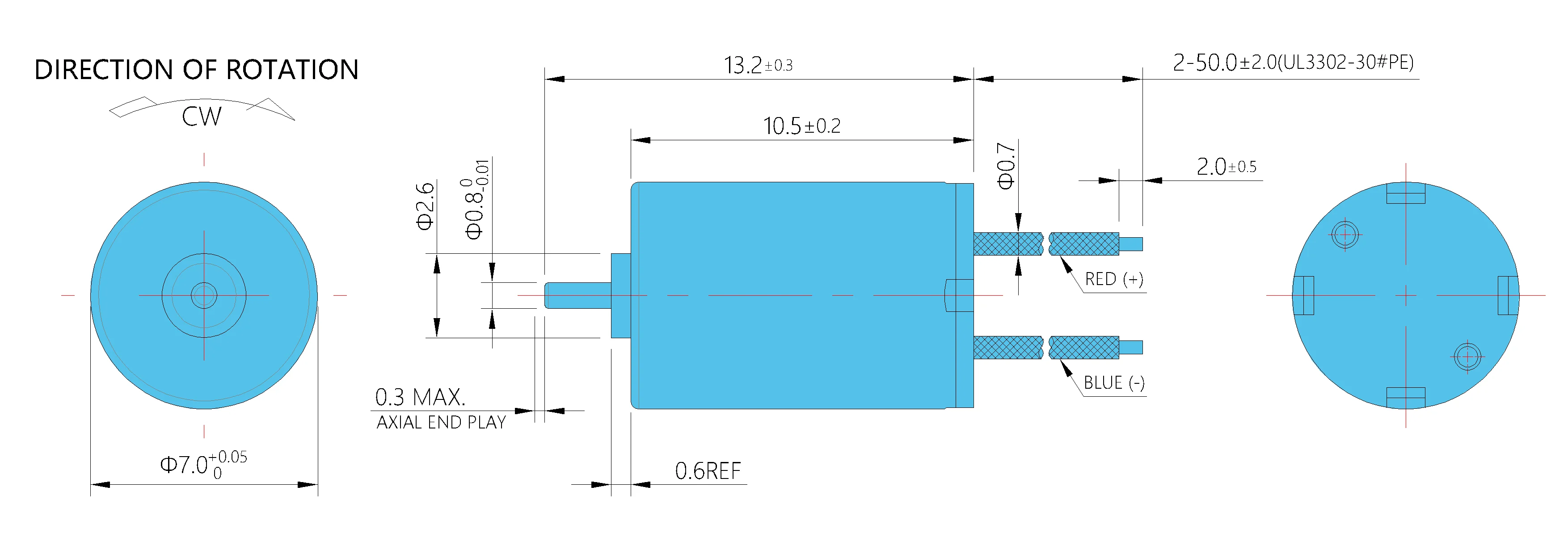

Diameter: 7.0 mm
Length: 10.5 mm
Typical Application:
Toys
Aircraft Rudder
No-load speed : 17000 ~ 38000 RPM
Stall torque: 0.26 ~ 0.67 mNm
Stall current: 0.099 ~ 1 A
Diameter: 7.0 mm
Length: 10.5 mm
Typical Application:
Toys
Aircraft Rudder
| 1 | Model | MD0710 | -05 | -06 | -07 | -02 | -08 |
| 2 | Rated Voltage | V DC | 1.5 | 3 | 3.7 | 5 | 6 |
| 3 | No-Load Speed | RPM | 28000 | 28000 | 28000 | 27000 | 28000 |
| 4 | No-Load Current | mA | 74 | 36 | 32 | 22 | 19 |
| 5 | Stall Torque | mNm | 0.426 | 0.42 | 0.446 | 0.43 | 0.426 |
| 6 | Stall Current | A | 0.968 | 0.476 | 0.416 | 0.287 | 0.245 |
| 7 | Rated Speed | RPM | 19765 | 19814 | 19957 | 19373 | 19908 |
| 8 | Rated Torque | mNm | 0.123 | 0.12 | 0.129 | 0.124 | 0.123 |
| 9 | Rated Current | A | 0.331 | 0.162 | 0.143 | 0.098 | 0.085 |
| 10 | Rated Output Power | W | 0.25 | 0.25 | 0.27 | 0.25 | 0.26 |
| 11 | Maximun Efficiency | % | 51 | 51 | 51 | 51 | 51 |
| 12 | Maximun Output Power | W | 0.31 | 0.31 | 0.33 | 0.31 | 0.31 |
| 13 | Terminal Resistance | Ω | 1.55 | 6.3 | 8.9 | 17.4 | 24.5 |
| 14 | Current Constant | A/mNm | 2.098 | 1.048 | 0.86 | 0.617 | 0.531 |
| 15 | Torque Constant | mNm/A | 0.477 | 0.954 | 1.162 | 1.621 | 1.885 |
| 16 | Speed Constant | RPM/V | 20032 | 10006 | 8216 | 5893 | 5066 |
| 17 | Friction Torque | mNm | 0.035 | 0.034 | 0.037 | 0.036 | 0.036 |
| 18 | Speed/torque gradient | RPM/mNm | 65133 | 66059 | 62916 | 63268 | 65856 |
