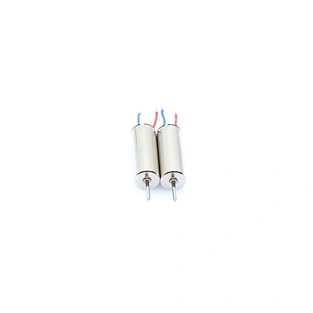

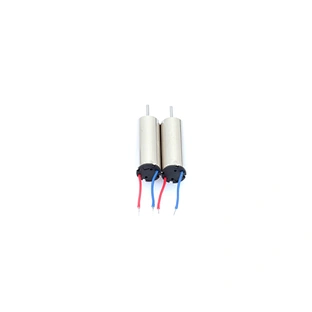

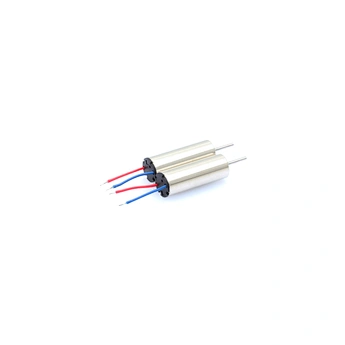

Model No: MD0720
0720 Coreless Brushed DC Electric Motor High Efficiency ROHS Certified Shell Mounting for Fan/Servo Home
Nominal voltage: 0.5 ~ 12 V DC
No-load speed : 2900 ~ 54000 RPM
Stall torque: 0.31 ~ 6.88 mNm
Stall current: 0.2 ~ 11.54 A

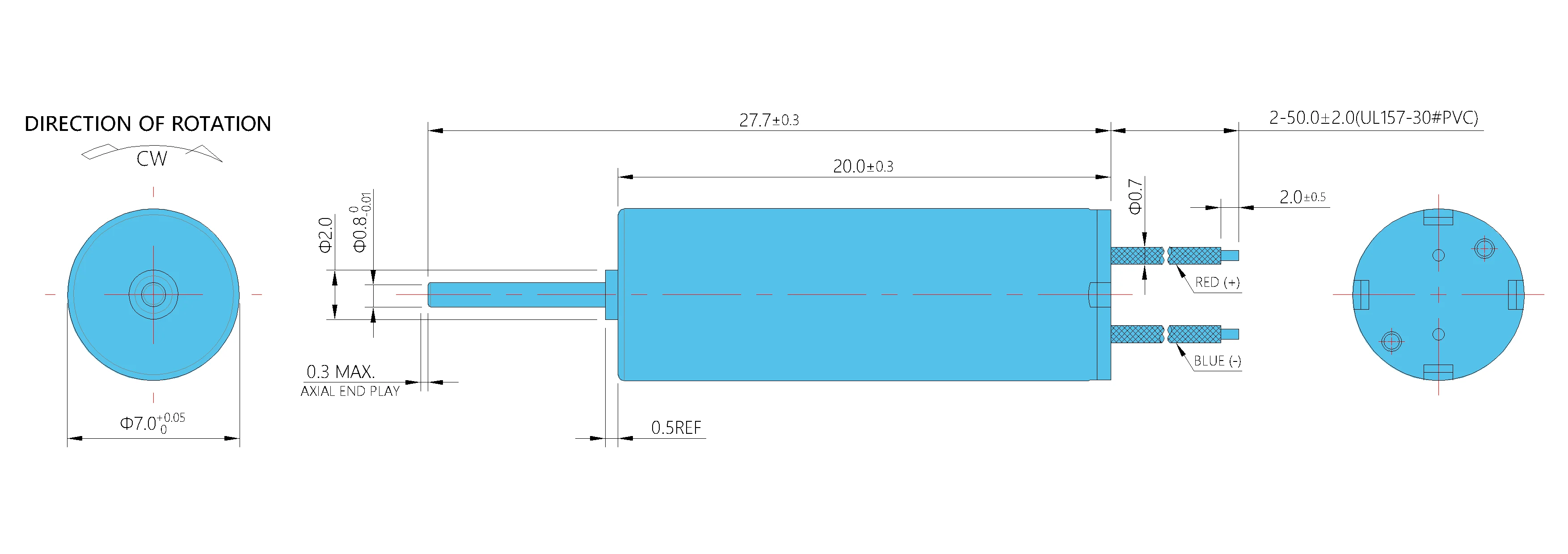

Diameter: 7.0 mm
Length: 20.0 mm
Typical Application:
Toys
Mini Drone
Model Aircraft
No-load speed : 2900 ~ 54000 RPM
Stall torque: 0.31 ~ 6.88 mNm
Stall current: 0.2 ~ 11.54 A
Diameter: 7.0 mm
Length: 20.0 mm
Typical Application:
Toys
Mini Drone
Model Aircraft
| 1 | Model | MD0720 | -10 | -07 | -21 | -04 | -05 |
| 2 | Rated Voltage | V DC | 1.5 | 3 | 3.7 | 7.4 | 12 |
| 3 | No-Load Speed | RPM | 21000 | 43000 | 45000 | 53000 | 15000 |
| 4 | No-Load Current | mA | 105 | 150 | 124 | 85 | 4 |
| 5 | Stall Torque | mNm | 2.083 | 6.876 | 3.6 | 5.864 | 1.702 |
| 6 | Stall Current | A | 3.261 | 10.714 | 4.868 | 4.596 | 0.231 |
| 7 | Rated Speed | RPM | 17170 | 38229 | 38047 | 46031 | 13008 |
| 8 | Rated Torque | mNm | 0.38 | 0.819 | 0.582 | 0.805 | 0.226 |
| 9 | Rated Current | A | 0.681 | 1.409 | 0.891 | 0.704 | 0.034 |
| 10 | Rated Output Power | W | 0.68 | 3.28 | 2.32 | 3.88 | 0.31 |
| 11 | Maximun Efficiency | % | 67 | 78 | 70 | 74 | 75 |
| 12 | Maximun Output Power | W | 1.15 | 7.81 | 4.28 | 8.19 | 0.67 |
| 13 | Terminal Resistance | Ω | 0.46 | 0.28 | 0.76 | 1.61 | 52 |
| 14 | Current Constant | A/mNm | 1.515 | 1.536 | 1.318 | 0.769 | 0.133 |
| 15 | Torque Constant | mNm/A | 0.66 | 0.651 | 0.759 | 1.3 | 7.507 |
| 16 | Speed Constant | RPM/V | 14466 | 14672 | 12587 | 7346 | 1272 |
| 17 | Friction Torque | mNm | 0.069 | 0.098 | 0.094 | 0.11 | 0.03 |
| 18 | Speed/torque gradient | RPM/mNm | 10080 | 6312 | 12608 | 9098 | 8811 |
