Model No: 0816D

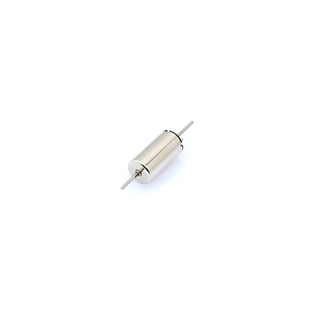

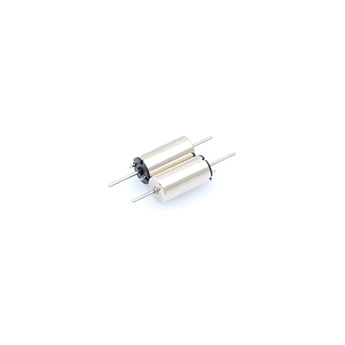

Double Shaft 0816 Coreless Motor 3V 6V 9V 12V Diameter 8mm High Speed Motor for RC Model Train

Nominal voltage: 3 ~ 12 V DC
No-load speed : 10000 ~ 44000 RPM
Stall torque: 0.94 ~ 4.16 mNm
Stall current: 0.11 ~ 6.67A

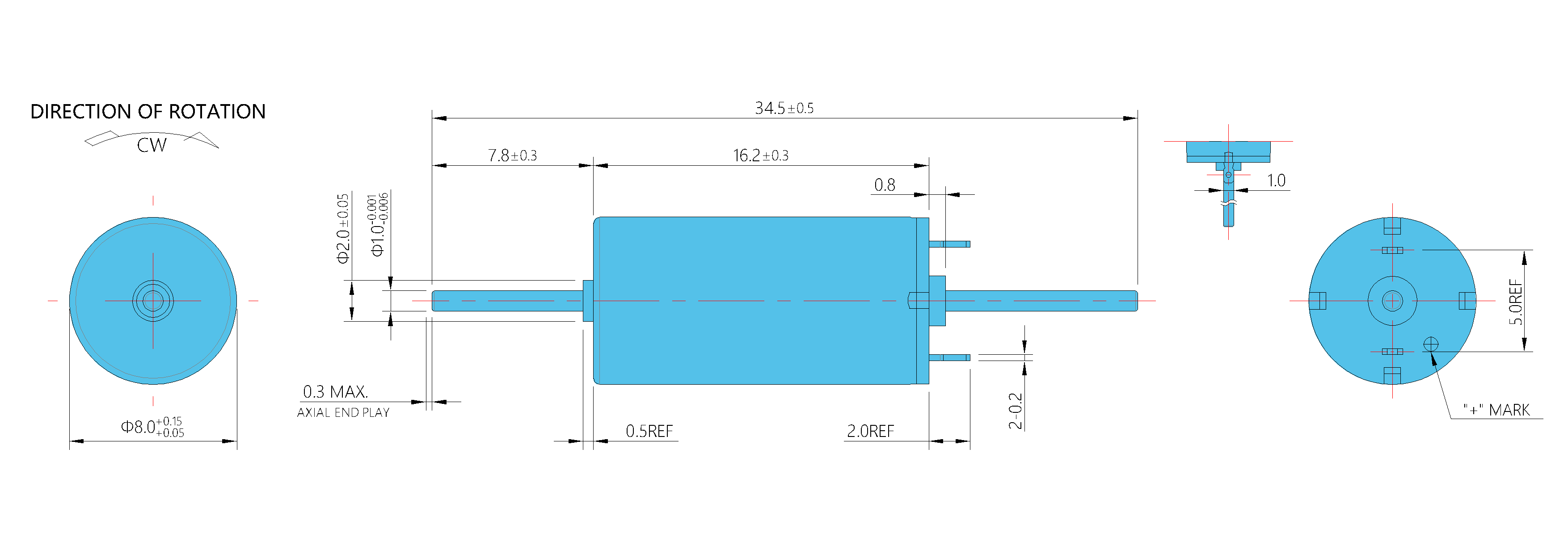

Diameter: 8.0 mm
Length: 16.2 mm

Typical Application:
Toys
Aircraft Rudder
Industrial Equipment
Dexterous Hands

Contact Now

1	Model	MD0816D	-03	-04	-05	-25	-23
2	Rated Voltage	V DC	3	6	9	12	12
3	No-Load Speed	RPM	12000	12000	12000	22000	18000
4	No-Load Current	mA	19	8	6	12	10
5	Stall Torque	mNm	1.41	1.329	1.424	3.11	2.837
6	Stall Current	A	0.632	0.293	0.21	0.625	0.462
7	Rated Speed	RPM	9944	9938	9927	19056	15186
8	Rated Torque	mNm	0.248	0.223	0.244	0.435	0.422
9	Rated Current	A	0.127	0.056	0.041	0.098	0.077
10	Rated Output Power	W	0.26	0.23	0.25	0.87	0.67
11	Maximun Efficiency	%	68	69	69	74	72
12	Maximun Output Power	W	0.45	0.42	0.45	1.8	1.33
13	Terminal Resistance	Ω	4.75	20.5	42.8	19.2	26
14	Current Constant	A/mNm	0.434	0.214	0.143	0.197	0.159
15	Torque Constant	mNm/A	2.302	4.667	6.969	5.073	6.284
16	Speed Constant	RPM/V	4148	2046	1370	1882	1520
17	Friction Torque	mNm	0.044	0.037	0.042	0.061	0.063
18	Speed/torque gradient	RPM/mNm	8559	8986	8415	7125	6288

Dexterous Hands 8mm motorDexterous Hands 8mm motorDexterous Hands 8mm motorDexterous Hands 8mm motorDexterous Hands 8mm motorDexterous Hands 8mm motordc coreless motordc coreless motordc coreless motordc coreless motordc coreless motordc coreless motor

DC Coreless Motor Customization Options：

Motor Housing: Diameter, Length
Motor Shaft: Diameter, Length, Output Direction, Quantity
Bearing Type: Ball Bearings / Sleeve Bearings
Number of Commutator Segments: 3 / 5 / 7 / 9 / 11 / 13
Brush Type: Precious Metal Brushes / Carbon Brushes
Power Connection: Lead Wires / Connector / Terminal Pins / Other
Mounting Type: Shell / Flange / Other
Position Sensor: Hall / Magnetoelectric / Photoelectric
Gear Reducer: Planetary Gearbox
