Model No: MD0716D

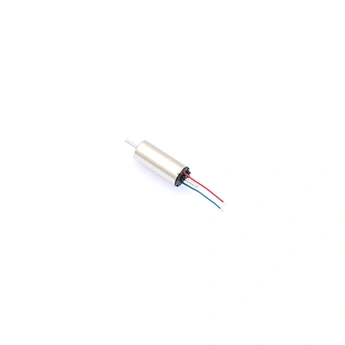

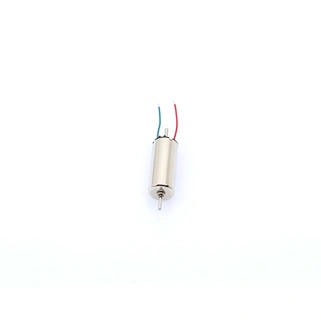

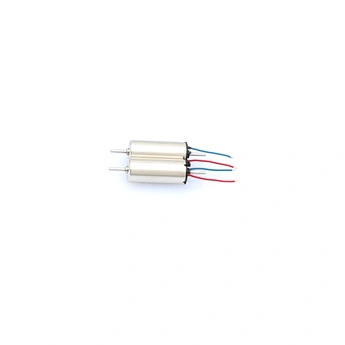

0716D Dual Coreless Brushed DC Motor for Drone & Electric Bicycle High RPM
Nominal voltage: 3 ~ 12 V DC
No-load speed : 12000 ~ 25000 RPM
Stall torque: 0.78 ~ 1.4 mNm
Stall current: 0.1 ~ 0.35 A

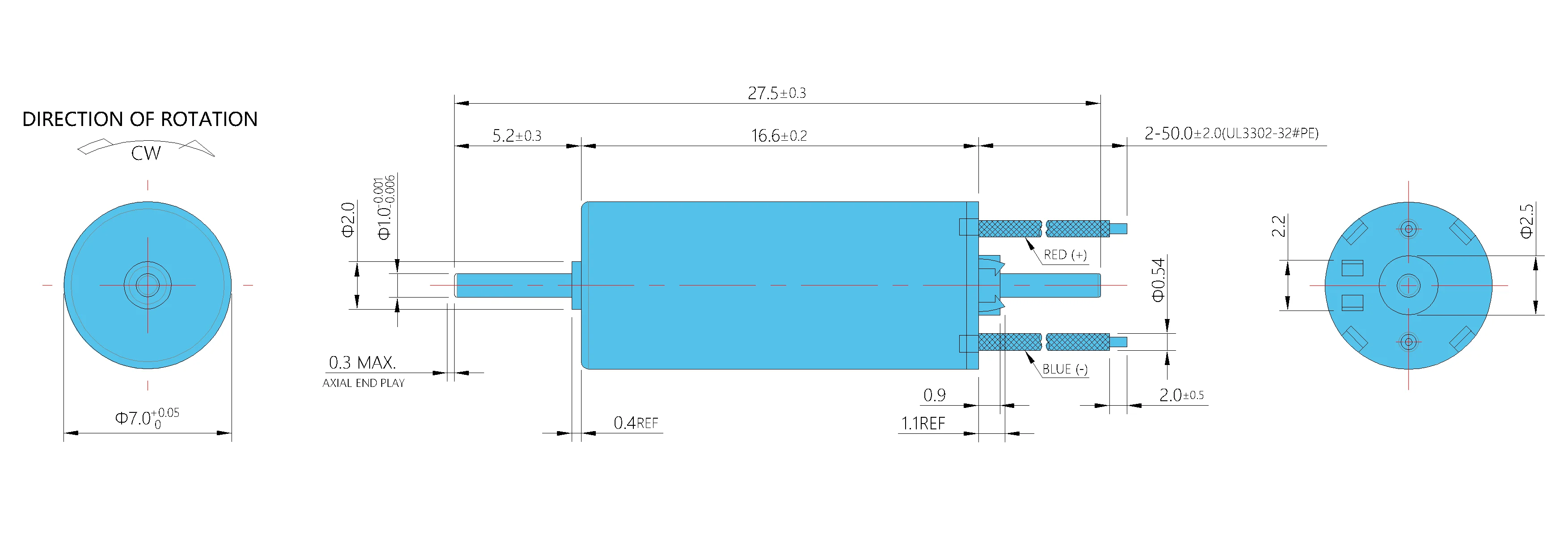

Diameter: 7.0 mm
Length: 16.6 mm
Typical Application:
Model Train
Toy
Speed Reducer
No-load speed : 12000 ~ 25000 RPM
Stall torque: 0.78 ~ 1.4 mNm
Stall current: 0.1 ~ 0.35 A
Diameter: 7.0 mm
Length: 16.6 mm
Typical Application:
Model Train
Toy
Speed Reducer
| 1 | Model | MD0716D | -01 | -02 | -03 | -13 | -06 |
| 2 | Rated Voltage | V DC | 3 | 6 | 9 | 12 | 12 |
| 3 | No-Load Speed | RPM | 12000 | 12000 | 12000 | 25000 | 18000 |
| 4 | No-Load Current | mA | 14 | 8 | 5 | 12 | 8 |
| 5 | Stall Torque | mNm | 0.784 | 0.849 | 0.852 | 1.353 | 1.243 |
| 6 | Stall Current | A | 0.353 | 0.194 | 0.129 | 0.316 | 0.212 |
| 7 | Rated Speed | RPM | 9481 | 9516 | 9570 | 19831 | 14548 |
| 8 | Rated Torque | mNm | 0.159 | 0.176 | 0.171 | 0.269 | 0.246 |
| 9 | Rated Current | A | 0.083 | 0.047 | 0.03 | 0.072 | 0.048 |
| 10 | Rated Output Power | W | 0.16 | 0.18 | 0.17 | 0.56 | 0.37 |
| 11 | Maximun Efficiency | % | 64 | 63 | 64 | 64 | 64 |
| 12 | Maximun Output Power | W | 0.24 | 0.27 | 0.27 | 0.88 | 0.59 |
| 13 | Terminal Resistance | Ω | 8.5 | 31 | 70 | 38 | 56.5 |
| 14 | Current Constant | A/mNm | 0.433 | 0.219 | 0.145 | 0.225 | 0.164 |
| 15 | Torque Constant | mNm/A | 2.312 | 4.573 | 6.895 | 4.454 | 6.08 |
| 16 | Speed Constant | RPM/V | 4131 | 2088 | 1385 | 2144 | 1570 |
| 17 | Friction Torque | mNm | 0.032 | 0.037 | 0.034 | 0.053 | 0.049 |
| 18 | Speed/torque gradient | RPM/mNm | 15186 | 14153 | 14061 | 18292 | 14593 |
