Model No: 0615D
0615 6mm Coreless Dual Shaft 12V Mini DC Drone Motor for Model Toy
Nominal voltage: 12.0~12.0 V DC
No-load speed : 21000~22000 RPM
Stall torque: 0.46~0.73mNm
Stall current: 0.088~0.15 A

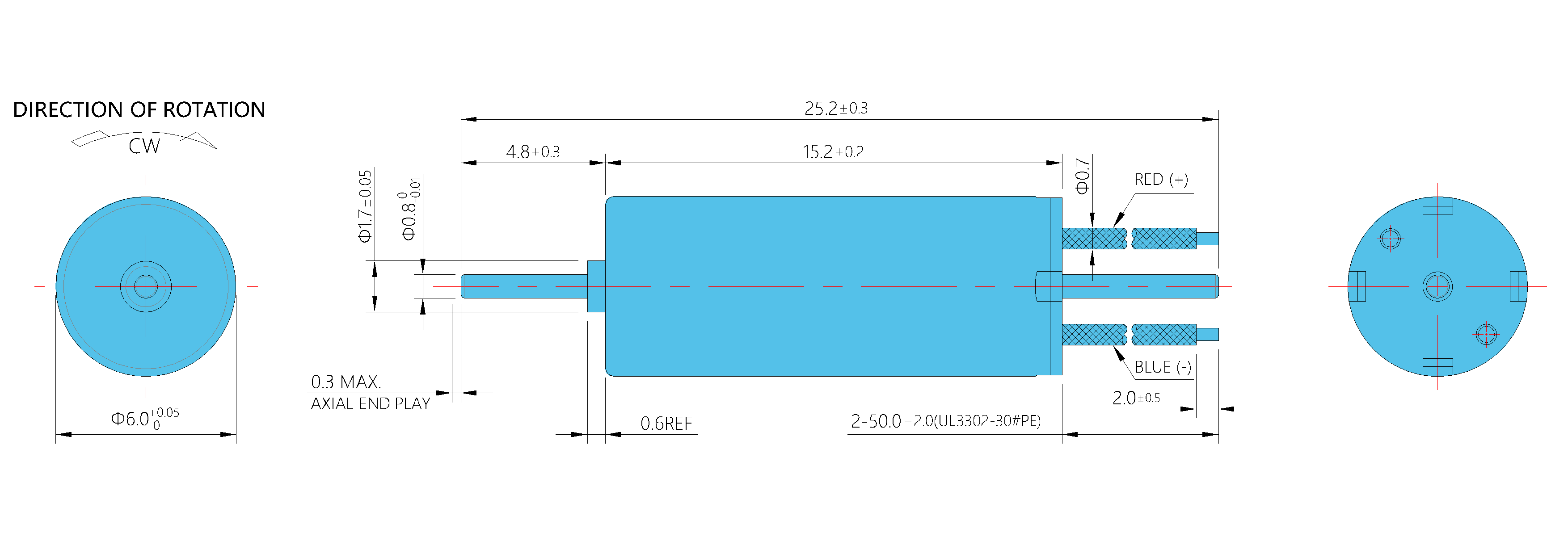

Diameter: 6.0 mm
Length: 15.2 mm
Typical Application:
Model Train
Toy
Speed Reducer
No-load speed : 21000~22000 RPM
Stall torque: 0.46~0.73mNm
Stall current: 0.088~0.15 A
Diameter: 6.0 mm
Length: 15.2 mm
Typical Application:
Model Train
Toy
Speed Reducer
| 1 | Model | MD0615D | -35 | -40 |
| 2 | Rated Voltage | V DC | 12 | 12 |
| 3 | No-Load Speed | RPM | 22000 | 21000 |
| 4 | No-Load Current | mA | 4 | 2 |
| 5 | Stall Torque | mNm | 0.73 | 0.461 |
| 6 | Stall Current | A | 0.15 | 0.088 |
| 7 | Rated Speed | RPM | 18609 | 17604 |
| 8 | Rated Torque | mNm | 0.121 | 0.071 |
| 9 | Rated Current | A | 0.028 | 0.015 |
| 10 | Rated Output Power | W | 0.24 | 0.13 |
| 11 | Maximun Efficiency | % | 70 | 72 |
| 12 | Maximun Output Power | W | 0.43 | 0.25 |
| 13 | Terminal Resistance | Ω | 80 | 137 |
| 14 | Current Constant | A/mNm | 0.2 | 0.186 |
| 15 | Torque Constant | mNm/A | 5.002 | 5.389 |
| 16 | Speed Constant | RPM/V | 1909 | 1772 |
| 17 | Friction Torque | mNm | 0.02 | 0.011 |
| 18 | Speed/torque gradient | RPM/mNm | 30538 | 45055 |
