Model No: MD1827

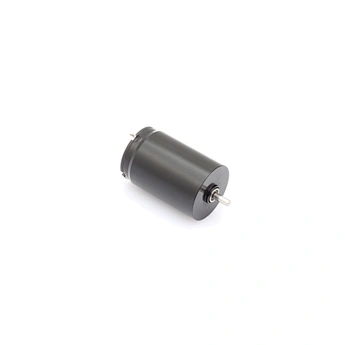

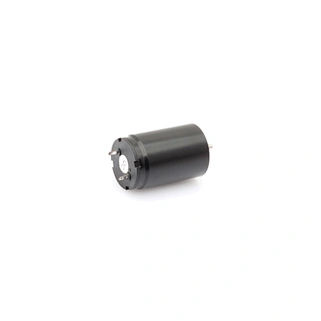

1827 Coreless Brushed DC Micro Motor 18mm Frame Low Noise Shell Mount for Home Appliance Toy Applications
Nominal voltage: 3 ~ 15 V DC
No-load speed : 6000 ~ 10000 RPM
Stall torque: 19 ~ 24 mNm
Stall current: 0.84 ~ 4 A

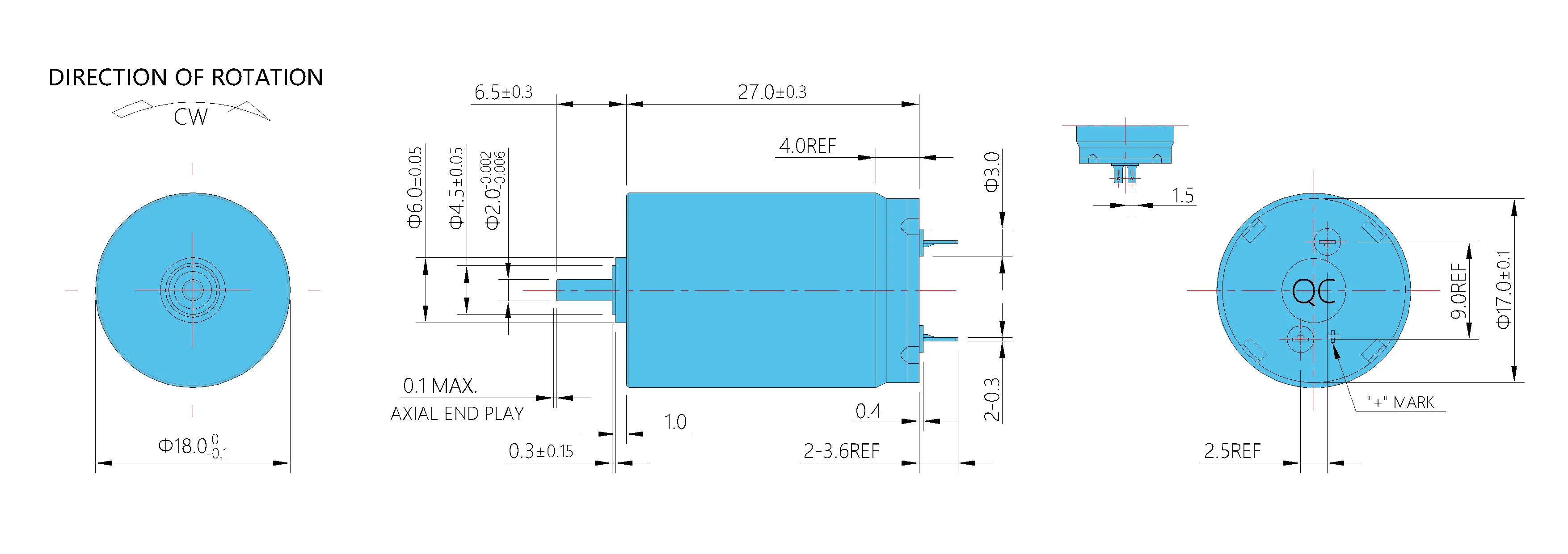

Diameter: 18.0 mm
Length: 27.0 mm
Typical Application:
Robot
Industrial Equipment
Tattoo machine
No-load speed : 6000 ~ 10000 RPM
Stall torque: 19 ~ 24 mNm
Stall current: 0.84 ~ 4 A
Diameter: 18.0 mm
Length: 27.0 mm
Typical Application:
Robot
Industrial Equipment
Tattoo machine
| 1 | Model | MD1827 | -01 | -02 | -03 | -06 | -04 |
| 2 | Rated Voltage | V DC | 3 | 6 | 9 | 12 | 12 |
| 3 | No-Load Speed | RPM | 6000 | 6000 | 6000 | 10000 | 6000 |
| 4 | No-Load Current | mA | 44 | 22 | 15 | 30 | 12 |
| 5 | Stall Torque | mNm | 18.869 | 19.275 | 19.438 | 24.485 | 20.447 |
| 6 | Stall Current | A | 4 | 2.069 | 1.385 | 2.143 | 1.091 |
| 7 | Rated Speed | RPM | 5314 | 5396 | 5363 | 8588 | 5349 |
| 8 | Rated Torque | mNm | 1.99 | 1.998 | 2.034 | 2.918 | 2.156 |
| 9 | Rated Current | A | 0.461 | 0.234 | 0.158 | 0.282 | 0.126 |
| 10 | Rated Output Power | W | 1.11 | 1.13 | 1.14 | 2.62 | 1.21 |
| 11 | Maximun Efficiency | % | 80 | 80 | 80 | 78 | 80 |
| 12 | Maximun Output Power | W | 2.93 | 3.04 | 3.05 | 6.25 | 3.2 |
| 13 | Terminal Resistance | Ω | 0.75 | 2.9 | 6.5 | 5.6 | 11 |
| 14 | Current Constant | A/mNm | 0.21 | 0.106 | 0.07 | 0.086 | 0.053 |
| 15 | Torque Constant | mNm/A | 4.77 | 9.416 | 14.192 | 11.588 | 18.952 |
| 16 | Speed Constant | RPM/V | 2002 | 1014 | 673 | 824 | 504 |
| 17 | Friction Torque | mNm | 0.21 | 0.207 | 0.213 | 0.348 | 0.227 |
| 18 | Speed/torque gradient | RPM/mNm | 315 | 312 | 308 | 398 | 292 |
