Model No: MD0714
MD0714 Coreless DC Mini Motor Permanent Magnet ROHS Certified for Electric Bicycle and Robot
Nominal voltage: 3 ~ 12 V DC
No-load speed : 15000 ~ 60000 RPM
Stall torque: 0.55 ~ 3.41 mNm
Stall current: 0.088 ~ 4.625 A

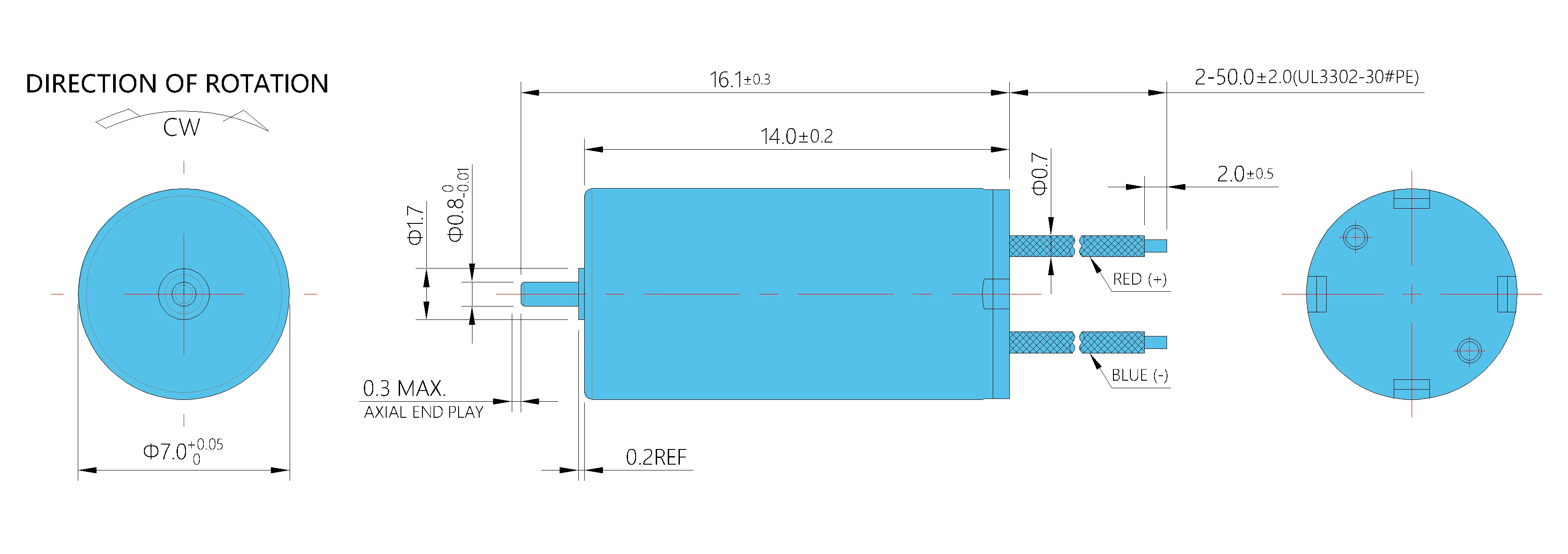

Diameter: 7.0 mm
Length: 14.0 mm
Typical Application:
Toys
Aircraft Rudder
No-load speed : 15000 ~ 60000 RPM
Stall torque: 0.55 ~ 3.41 mNm
Stall current: 0.088 ~ 4.625 A
Diameter: 7.0 mm
Length: 14.0 mm
Typical Application:
Toys
Aircraft Rudder
| 1 | Model | MD0714 | -01 | -06 | -16 | -05 | -21 |
| 2 | Rated Voltage | V DC | 3 | 3.7 | 5 | 7.4 | 12 |
| 3 | No-Load Speed | RPM | 18500 | 54500 | 45000 | 46500 | 16000 |
| 4 | No-Load Current | mA | 24 | 105 | 42 | 48 | 6 |
| 5 | Stall Torque | mNm | 0.782 | 1.865 | 2.327 | 2.466 | 0.552 |
| 6 | Stall Current | A | 0.547 | 3.083 | 2.273 | 1.721 | 0.088 |
| 7 | Rated Speed | RPM | 14417 | 44267 | 38765 | 38707 | 11501 |
| 8 | Rated Torque | mNm | 0.167 | 0.35 | 0.319 | 0.418 | 0.15 |
| 9 | Rated Current | A | 0.136 | 0.664 | 0.348 | 0.331 | 0.028 |
| 10 | Rated Output Power | W | 0.25 | 1.62 | 1.3 | 1.69 | 0.18 |
| 11 | Maximun Efficiency | % | 62 | 66 | 74 | 69 | 53 |
| 12 | Maximun Output Power | W | 0.38 | 2.66 | 2.74 | 3.01 | 0.23 |
| 13 | Terminal Resistance | Ω | 5.48 | 1.2 | 2.2 | 4.3 | 137 |
| 14 | Current Constant | A/mNm | 0.67 | 1.597 | 0.959 | 0.678 | 0.148 |
| 15 | Torque Constant | mNm/A | 1.493 | 0.626 | 1.043 | 1.474 | 6.764 |
| 16 | Speed Constant | RPM/V | 6395 | 15249 | 9155 | 6478 | 1412 |
| 17 | Friction Torque | mNm | 0.036 | 0.066 | 0.044 | 0.071 | 0.041 |
| 18 | Speed/torque gradient | RPM/mNm | 23472 | 29221 | 19310 | 18896 | 28591 |
