Model No: MD0712
MD0712 Coreless DC Mini Motor High Efficiency DIA 7MM Frame Permanent Magnet ROHS Certified Home Appliance Smart Home
Nominal voltage: 1.5 ~ 12 V DC
No-load speed : 25000 ~ 44500 RPM
Stall torque: 0.52 ~ 1.08 mNm
Stall current: 0.13 ~ 1.53 A

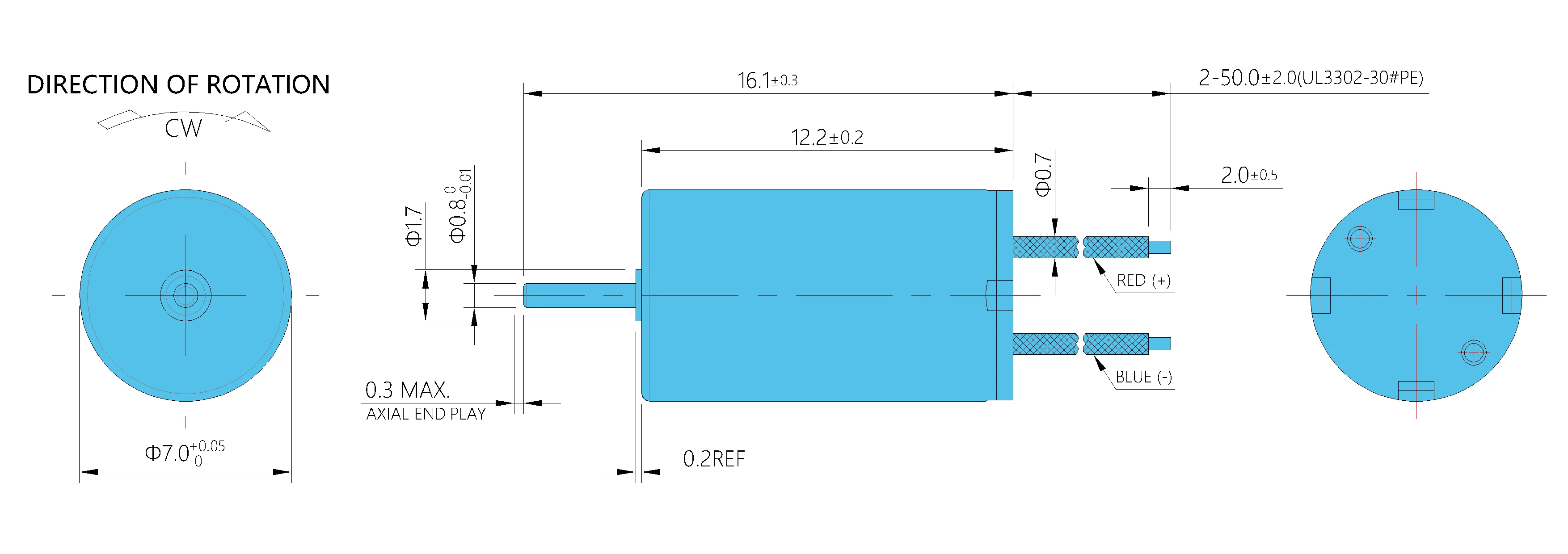

Diameter: 7.0 mm
Length: 12.2 mm
Typical Application:
Toys
Aircraft Rudder
No-load speed : 25000 ~ 44500 RPM
Stall torque: 0.52 ~ 1.08 mNm
Stall current: 0.13 ~ 1.53 A
Diameter: 7.0 mm
Length: 12.2 mm
Typical Application:
Toys
Aircraft Rudder
| 1 | Model | MD0712 | -03 | -04 | -05 | -07 | -01 |
| 2 | Rated Voltage | V DC | 1.5 | 3 | 3.7 | 6 | 12 |
| 3 | No-Load Speed | RPM | 30000 | 30000 | 30000 | 30000 | 25000 |
| 4 | No-Load Current | mA | 51 | 26 | 20 | 13 | 7 |
| 5 | Stall Torque | mNm | 0.679 | 0.742 | 0.716 | 0.745 | 0.517 |
| 6 | Stall Current | A | 1.531 | 0.833 | 0.643 | 0.417 | 0.126 |
| 7 | Rated Speed | RPM | 24585 | 24772 | 24455 | 24690 | 18945 |
| 8 | Rated Torque | mNm | 0.126 | 0.133 | 0.128 | 0.134 | 0.125 |
| 9 | Rated Current | A | 0.326 | 0.171 | 0.132 | 0.085 | 0.036 |
| 10 | Rated Output Power | W | 0.32 | 0.35 | 0.33 | 0.35 | 0.25 |
| 11 | Maximun Efficiency | % | 66 | 67 | 67 | 67 | 58 |
| 12 | Maximun Output Power | W | 0.54 | 0.59 | 0.56 | 0.59 | 0.34 |
| 13 | Terminal Resistance | Ω | 0.98 | 3.6 | 5.75 | 14.4 | 95 |
| 14 | Current Constant | A/mNm | 2.18 | 1.088 | 0.87 | 0.542 | 0.231 |
| 15 | Torque Constant | mNm/A | 0.459 | 0.919 | 1.149 | 1.845 | 4.33 |
| 16 | Speed Constant | RPM/V | 20820 | 10387 | 8310 | 5177 | 2206 |
| 17 | Friction Torque | mNm | 0.023 | 0.024 | 0.023 | 0.024 | 0.03 |
| 18 | Speed/torque gradient | RPM/mNm | 44487 | 40677 | 41578 | 40408 | 48394 |
