Model No: MD 1215D

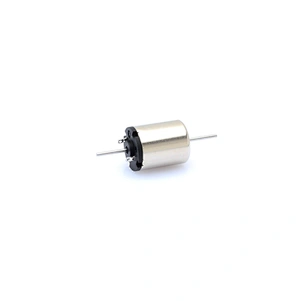

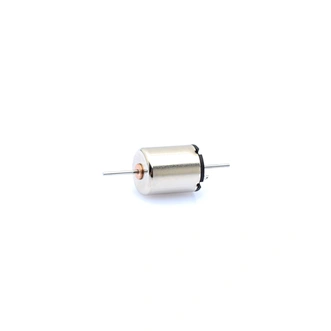

1215D Coreless Permanent Magnet DC Brushed Motor ROHS Certified for Tattoo Machine

Nominal voltage: 12.0~12.0 V DC
No-load speed : 10000 ~ 17000 RPM
Stall torque: 1.9 ~ 3.7 mNm
Stall current: 0.17 ~ 0.57 A

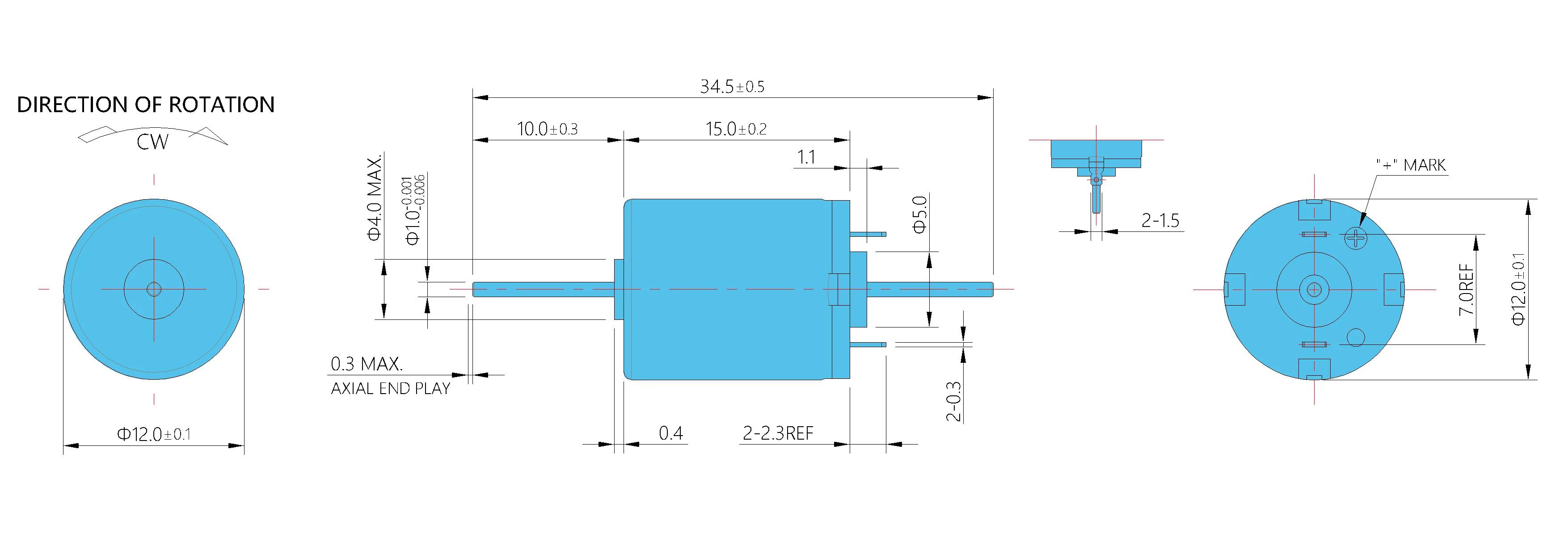

Diameter: 12.0 mm
Length: 15.0 mm

Typical Application:
Model Train
Toy
Speed Reducer
Contact Now
1ModelMD1215D-09-10-05-11-14
2Rated VoltageV DC1212121212
3No-Load SpeedRPM1700015000140001200010000
4No-Load CurrentmA65443
5Stall TorquemNm3.6833.1732.7652.2611.853
6Stall CurrentA0.5710.4320.3460.2450.168
7Rated SpeedRPM156171358112486104628687
8Rated TorquemNm0.3790.3430.2990.2910.25
9Rated CurrentA0.0640.0510.0410.0350.025
10Rated Output PowerW0.620.490.390.320.23
11Maximun Efficiency%8080807675
12Maximun Output PowerW1.681.271.010.710.49
13Terminal ResistanceΩ2127.834.74971.3
14Current ConstantA/mNm0.1540.1340.1240.1070.089
15Torque ConstantmNm/A6.5137.4378.099.38611.21
16Speed ConstantRPM/V1466128411801017852
17Friction TorquemNm0.0390.0370.0320.0380.034
18Speed/torque gradientRPM/mNm47284800506253125418
