Model No: MD0617

0617 6mm Coreless Dual Shaft 12V Mini DC Drone Motor

Nominal voltage: 12.0~12.0 V DC
No-load speed : 22000~22000 RPM
Stall torque: 0.9~0.9mNm
Stall current: 0.18~0.18 A

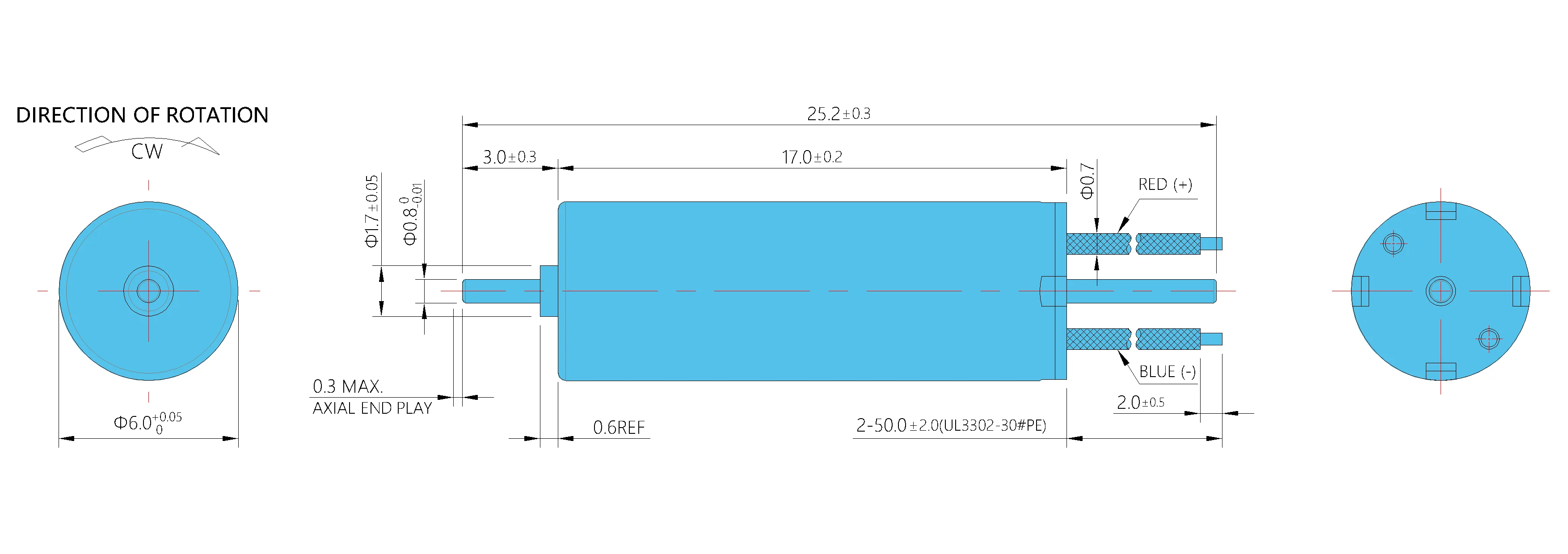

Diameter: 6.0 mm
Length: 17 mm

Typical Application:
Model Train
Toy
Speed Reducer

Contact Now

1	Model	MD0617D	-01
2	Rated Voltage	V DC	12
3	No-Load Speed	RPM	22000
4	No-Load Current	mA	3
5	Stall Torque	mNm	0.902
6	Stall Current	A	0.179
7	Rated Speed	RPM	19129
8	Rated Torque	mNm	0.118
9	Rated Current	A	0.026
10	Rated Output Power	W	0.24
11	Maximun Efficiency	%	76
12	Maximun Output Power	W	0.52
13	Terminal Resistance	Ω	67
14	Current Constant	A/mNm	0.195
15	Torque Constant	mNm/A	5.121
16	Speed Constant	RPM/V	1865
17	Friction Torque	mNm	0.015
18	Speed/torque gradient	RPM/mNm	24393

DC Micro Motor Sample Proofing + Mass ProductionDC Micro Motor Source Manufacturing FactoryDC Micro Motor Global SupplyDC Micro Motor Sample Proofing + Massdc coreless dc coreless motordc coreless motordc coreless motordc coreless motordc coreless motordc coreless motorDC Micro Motor Source Manufacturing FactoryDC Micro Motor Source Manufacturing Factory¹DC Micro Motor Source Manufacturing Factory¹DC Micro Motor Source Manufacturing Factory¹DC Micro Motor Source Manufacturing FactoryDC Micro Motor Global SupplyDC Micro Motor Global SupplyDC Micro Motor Global SupplyDC Micro Motor Global SupplyDC Micro Motor Global Supply

DC Coreless Motor Customization Options：

Motor Housing: Diameter, Length
Motor Shaft: Diameter, Length, Output Direction, Quantity
Bearing Type: Ball Bearings / Sleeve Bearings
Number of Commutator Segments: 3 / 5 / 7 / 9 / 11 / 13
Brush Type: Precious Metal Brushes / Carbon Brushes
Power Connection: Lead Wires / Connector / Terminal Pins / Other
Mounting Type: Shell / Flange / Other
Position Sensor: Hall / Magnetoelectric / Photoelectric
Gear Reducer: Planetary Gearbox
