Model No: MD3663D
24V 3663D Dual Shaft 36mm DC Coreless Brushed Motor
Nominal voltage: 24 V DC
No-load speed : 8000 RPM
Stall torque: 587 m.Nm
Stall current: 21 A

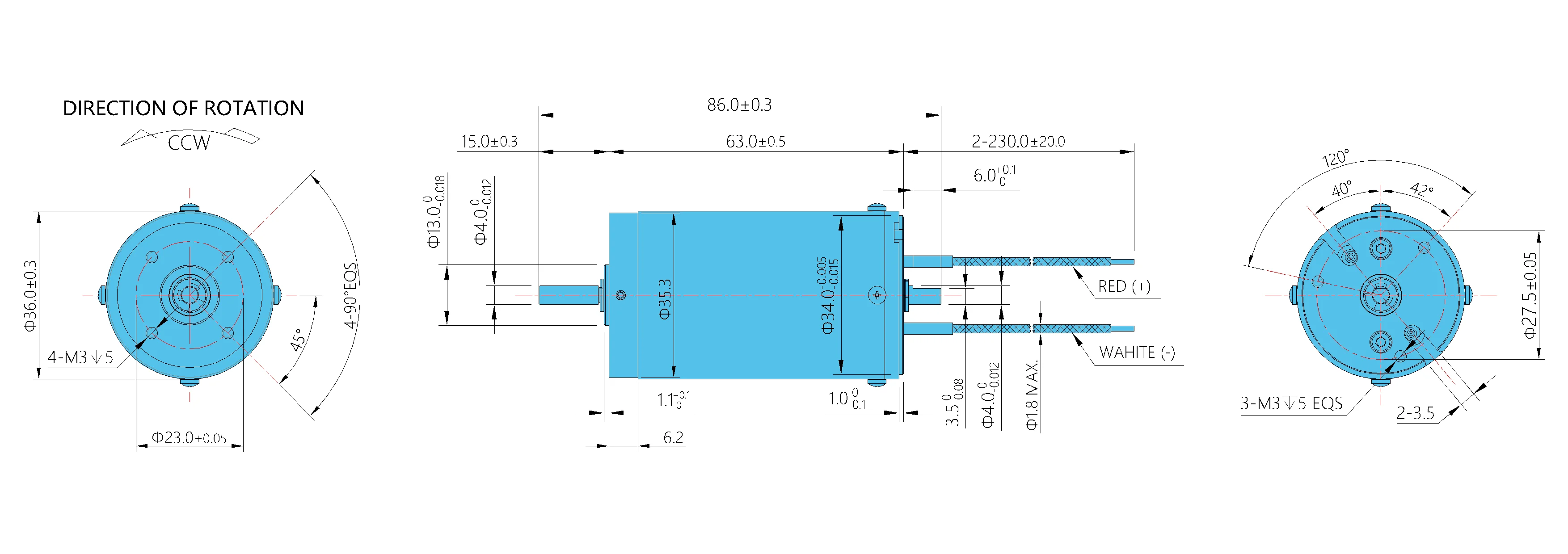

Diameter: 36.0 mm
Length: 63.0 mm
Typical Application:
Aircraft Rudder
Industrial Equipment
Aerospace
No-load speed : 8000 RPM
Stall torque: 587 m.Nm
Stall current: 21 A
Diameter: 36.0 mm
Length: 63.0 mm
Typical Application:
Aircraft Rudder
Industrial Equipment
Aerospace
| 1 | Model | MD3663D | -1 |
| 2 | Rated Voltage | V DC | 24 |
| 3 | No-Load Speed | RPM | 8000 |
| 4 | No-Load Current | mA | 110 |
| 5 | Stall Torque | mNm | 587 |
| 6 | Stall Current | A | 21.1 |
| 7 | Rated Speed | RPM | 7550 |
| 8 | Rated Torque | mNm | 42.5 |
| 9 | Rated Current | A | 1.6 |
| 10 | Rated Output Power | W | 33.6 |
| 11 | Maximun Efficiency | % | 86 |
| 12 | Maximun Output Power | W | 125 |
| 13 | Terminal Resistance | Ω | 1.14 |
| 14 | Current Constant | A/mNm | 0.036 |
| 15 | Torque Constant | mNm/A | 28 |
| 16 | Speed Constant | RPM/V | 341 |
| 17 | Friction Torque | mNm | 3.1 |
| 18 | Speed/torque gradient | RPM/mNm | 14 |
