Model No: MD2334
2334 Coreless Motor Quadcopter Drone High Torque Motor Micro Small Motor
Nominal voltage: 3 ~ 15 V DC
No-load speed : 6000 ~ 7500 RPM
Stall torque: 14 ~ 19 mNm
Stall current: 0.64 ~ 3 A

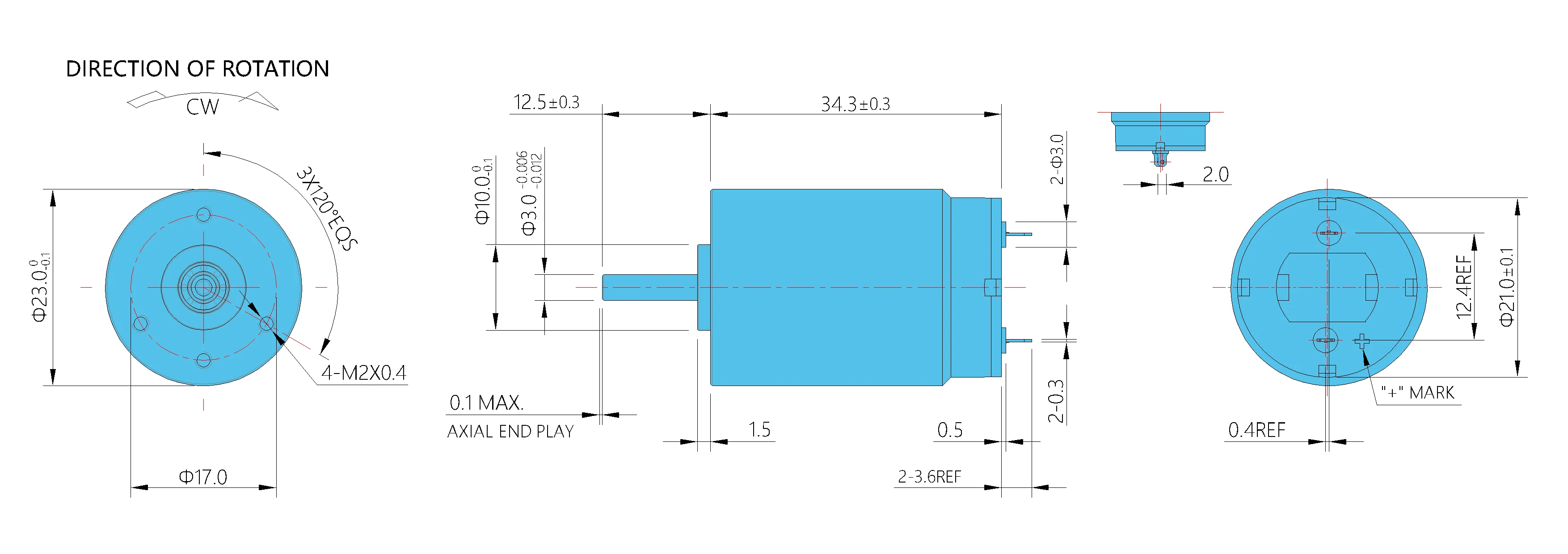

Diameter: 23.0 mm
Length: 34.3 mm
Typical Application:
Industrial Equipment
Nail Gun
No-load speed : 6000 ~ 7500 RPM
Stall torque: 14 ~ 19 mNm
Stall current: 0.64 ~ 3 A
Diameter: 23.0 mm
Length: 34.3 mm
Typical Application:
Industrial Equipment
Nail Gun
| 1 | Model | MD2334 | -02 | -03 | -04 | -01 | -05 |
| 2 | Rated Voltage | V DC | 3 | 6 | 9 | 12 | 12 |
| 3 | No-Load Speed | RPM | 6000 | 6000 | 6000 | 7500 | 6000 |
| 4 | No-Load Current | mA | 34 | 17 | 11 | 12 | 9 |
| 5 | Stall Torque | mNm | 14.19 | 14.706 | 14.057 | 18.735 | 15.093 |
| 6 | Stall Current | A | 3 | 1.579 | 1 | 1.263 | 0.811 |
| 7 | Rated Speed | RPM | 5286 | 5392 | 5349 | 6838 | 5382 |
| 8 | Rated Torque | mNm | 1.519 | 1.534 | 1.483 | 1.835 | 1.599 |
| 9 | Rated Current | A | 0.352 | 0.18 | 0.115 | 0.135 | 0.094 |
| 10 | Rated Output Power | W | 0.84 | 0.87 | 0.83 | 1.31 | 0.9 |
| 11 | Maximun Efficiency | % | 80 | 80 | 80 | 81 | 80 |
| 12 | Maximun Output Power | W | 2.2 | 2.32 | 2.2 | 3.72 | 2.38 |
| 13 | Terminal Resistance | Ω | 1 | 3.8 | 9 | 9.5 | 14.8 |
| 14 | Current Constant | A/mNm | 0.209 | 0.106 | 0.07 | 0.067 | 0.053 |
| 15 | Torque Constant | mNm/A | 4.784 | 9.415 | 14.214 | 14.974 | 18.824 |
| 16 | Speed Constant | RPM/V | 1996 | 1014 | 672 | 638 | 507 |
| 17 | Friction Torque | mNm | 0.163 | 0.16 | 0.156 | 0.18 | 0.169 |
| 18 | Speed/torque gradient | RPM/mNm | 417 | 409 | 425 | 405 | 399 |
