Model No: MD0718

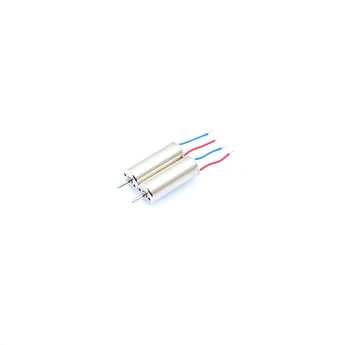

0718 Coreless Brushed DC Motor Permanent Magnet Motor 7mm High Efficiency CW Fan Electric Bicycle Home Car Boat

Nominal voltage: 3 ~ 12 V DC
No-load speed : 30000 ~ 60000 RPM
Stall torque: 2.6 ~ 6.6 mNm
Stall current: 0.76 ~ 12.55 A

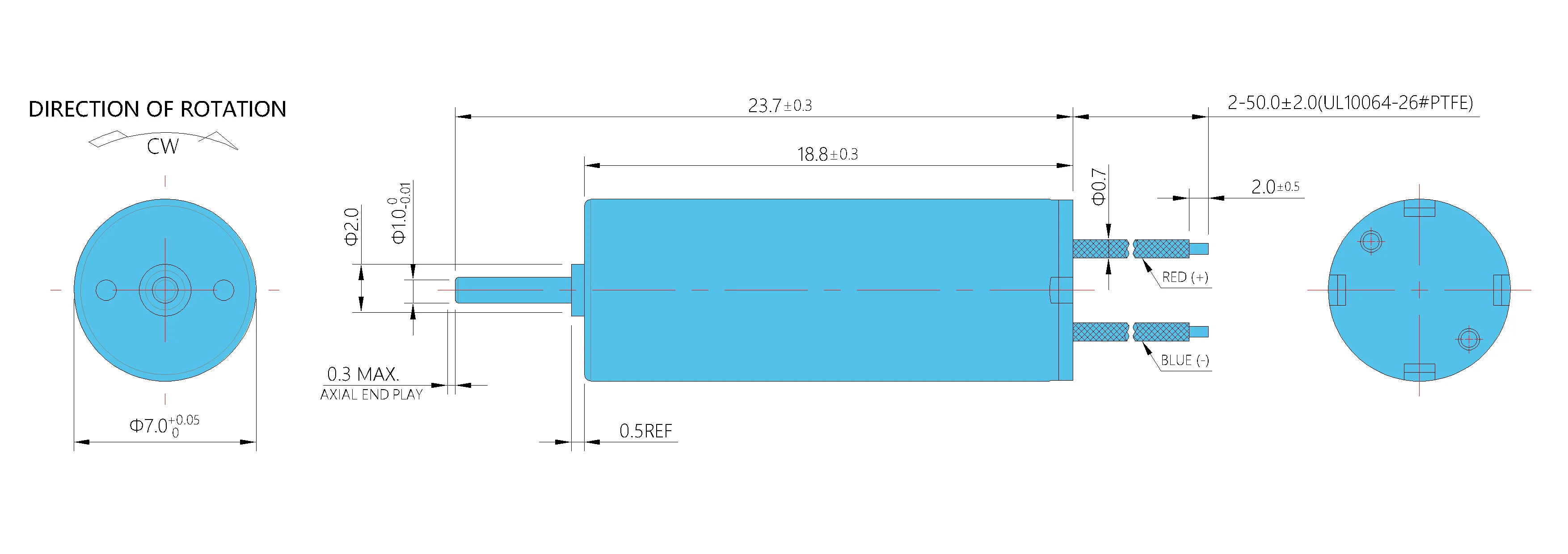

Diameter: 7.0 mm
Length: 18.8 mm

Typical Application:
Toys
Aircraft Rudder
Contact Now
1ModelMD0718-04-06-07-08-09
2Rated VoltageV DC356912
3No-Load SpeedRPM3000030000300003000030000
4No-Load CurrentmA5129241613
5Stall TorquemNm2.7642.6272.6412.6532.803
6Stall CurrentA31.7061.4290.9570.759
7Rated SpeedRPM2609826029260442608026041
8Rated TorquemNm0.3630.3450.3450.3460.37
9Rated CurrentA0.4390.250.2080.1390.112
10Rated Output PowerW0.990.940.940.941.01
11Maximun Efficiency%7575767675
12Maximun Output PowerW2.172.062.072.082.2
13Terminal ResistanceΩ12.934.29.415.8
14Current ConstantA/mNm1.0670.6390.5320.3550.266
15Torque ConstantmNm/A0.9371.5661.882.8183.754
16Speed ConstantRPM/V101906098507933892544
17Friction TorquemNm0.0480.0450.0450.0450.049
18Speed/torque gradientRPM/mNm1087311408113441130510704
