Model No: MD0615

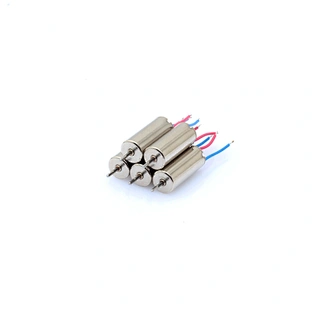

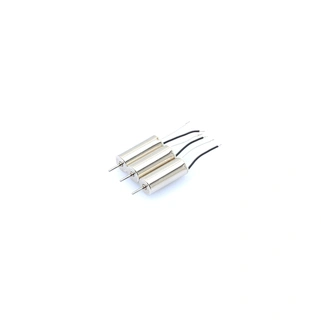

0615 DC Coreless Micro Motor For Mini Drone Toy
Nominal voltage: 2.4~12.0 V DC
No-load speed : 7000~70000 RPM
Stall torque: 0.21~3.11mNm
Stall current: 0.047~6.167 A

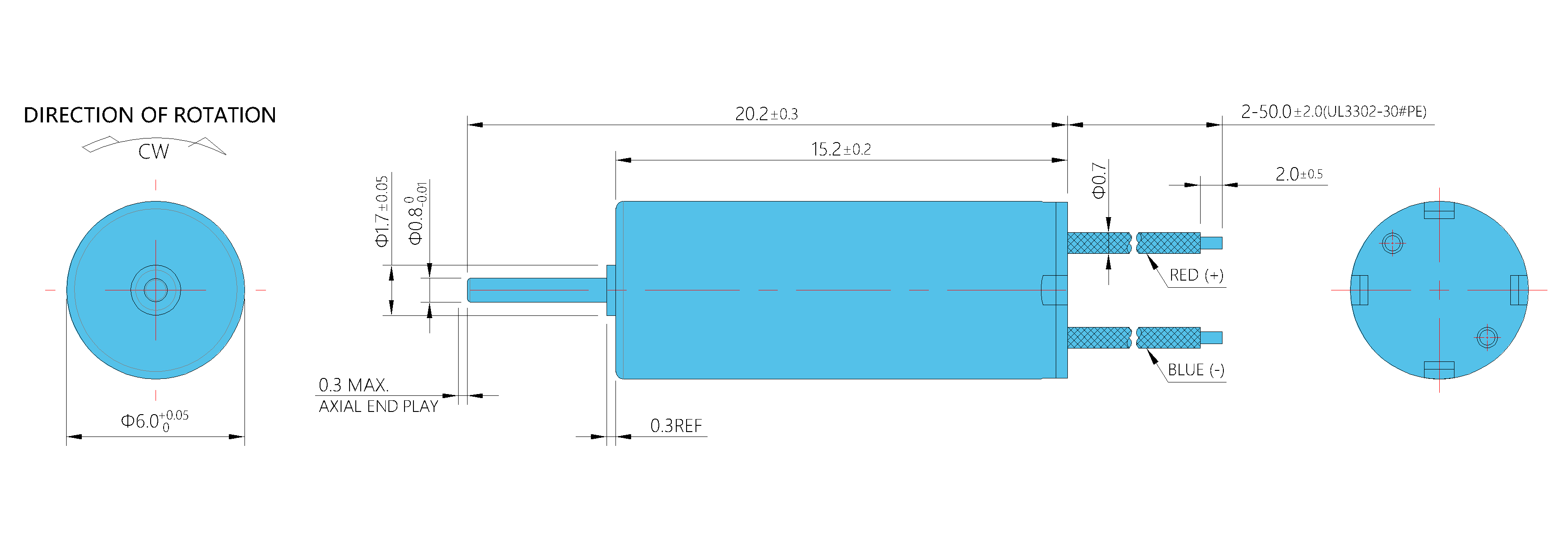

Diameter: 6.0 mm
Length: 15.2 mm
Typical Application:
Toys
Aircraft Rudder
Robot
Mini Drone
No-load speed : 7000~70000 RPM
Stall torque: 0.21~3.11mNm
Stall current: 0.047~6.167 A
Diameter: 6.0 mm
Length: 15.2 mm
Typical Application:
Toys
Aircraft Rudder
Robot
Mini Drone
| 1 | Model | MD0615 | -1 | -6 | -15 | -4 | -35 |
| 2 | Rated Voltage | V DC | 2.7 | 3.7 | 3.7 | 7.4 | 12 |
| 3 | No-Load Speed | RPM | 60000 | 70000 | 55000 | 45000 | 22000 |
| 4 | No-Load Current | mA | 125 | 130 | 64 | 25 | 4 |
| 5 | Stall Torque | mNm | 1.345 | 1.837 | 2.127 | 1.495 | 0.73 |
| 6 | Stall Current | A | 3.375 | 3.895 | 3.458 | 1 | 0.15 |
| 7 | Rated Speed | RPM | 48233 | 56992 | 47735 | 37746 | 18609 |
| 8 | Rated Torque | mNm | 0.264 | 0.341 | 0.292 | 0.239 | 0.121 |
| 9 | Rated Current | A | 0.762 | 0.83 | 0.53 | 0.181 | 0.028 |
| 10 | Rated Output Power | W | 1.33 | 2.04 | 1.46 | 0.95 | 0.24 |
| 11 | Maximun Efficiency | % | 65 | 66 | 74 | 71 | 70 |
| 12 | Maximun Output Power | W | 2.11 | 3.37 | 3.08 | 1.76 | 0.43 |
| 13 | Terminal Resistance | Ω | 0.8 | 0.95 | 1.07 | 7.4 | 80 |
| 14 | Current Constant | A/mNm | 2.417 | 2.05 | 1.596 | 0.652 | 0.2 |
| 15 | Torque Constant | mNm/A | 0.414 | 0.488 | 0.627 | 1.533 | 5.002 |
| 16 | Speed Constant | RPM/V | 23077 | 19572 | 15237 | 6229 | 1909 |
| 17 | Friction Torque | mNm | 0.052 | 0.063 | 0.04 | 0.038 | 0.02 |
| 18 | Speed/torque gradient | RPM/mNm | 44614 | 38109 | 26015 | 30069 | 30538 |
