Model No: 1220D Motor

Dual Shaft 1220 12mm Coreless Permanent Magnet DC Brushed Motor 12V High Efficiency High Torque for Home Appliance Forklift

Nominal voltage: 7~12 V DC
No-load speed : 6500~22000 rpm/min
Stall torque: 3.6~10.1 m.Nm
Stall current: 0.21~1.97 A

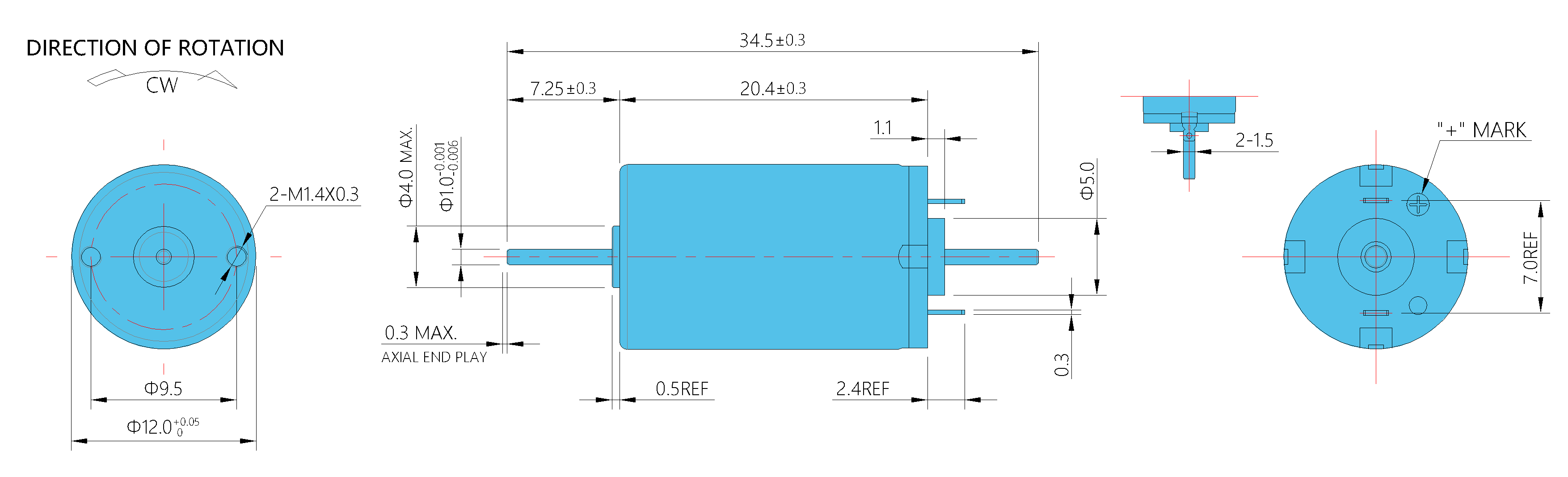

Diameter: 12.0mm
Length: 20.4 mm

Typical Application:
Speed Reducer
Model Train
Toy

Contact Now

1	Model	MD1220D	-15	-8	-12	-11	-3
2	Rated Voltage	V DC	7	12	12	12	12
3	No-Load Speed	RPM	12500	22000	16000	8500	6500
4	No-Load Current	mA	10	15	12	10	4
5	Stall Torque	mNm	7.144	10.091	7.729	5.511	3.572
6	Stall Current	A	1.346	1.967	1.111	0.429	0.211
7	Rated Speed	RPM	11336	20072	14436	7186	5595
8	Rated Torque	mNm	0.618	0.885	0.808	0.852	0.497
9	Rated Current	A	0.126	0.186	0.127	0.075	0.033
10	Rated Output Power	W	0.73	1.86	1.22	0.64	0.29
11	Maximun Efficiency	%	83	83	80	72	74
12	Maximun Output Power	W	2.32	5.81	3.26	1.23	0.61
13	Terminal Resistance	Ω	5.2	6.1	10.8	28	57
14	Current Constant	A/mNm	0.187	0.193	0.142	0.076	0.058
15	Torque Constant	mNm/A	5.346	5.169	7.032	13.167	17.295
16	Speed Constant	RPM/V	1786	1847	1358	725	552
17	Friction Torque	mNm	0.053	0.078	0.084	0.132	0.069
18	Speed/torque gradient	RPM/mNm	1737	2180	2086	1542	1820

DC Coreless Motormicro motordual shaft blower motorDC Coreless Motormicro motordual shaft blower motorDC Coreless Motormicro motordual shaft blower motorDC Coreless Motormicro motordual shaft blower motorDC Coreless Motormicro motordual shaft blower motorDC Coreless Motormicro motordual shaft blower motorDC Coreless Motormicro motordual shaft blower motor

DC Coreless Motor Customization Options：

Motor Housing: Diameter, Length
Motor Shaft: Diameter, Length, Output Direction, Quantity
Bearing Type: Ball Bearings / Sleeve Bearings
Number of Commutator Segments: 3 / 5 / 7 / 9 / 11 / 13
Brush Type: Precious Metal Brushes / Carbon Brushes
Power Connection: Lead Wires / Connector / Terminal Pins / Other
Mounting Type: Shell / Flange / Other
Position Sensor: Hall / Magnetoelectric / Photoelectric
Gear Reducer: Planetary Gearbox
