Model No: MD0610

0610 6mm DC Coreless Micro Motor Low Voltage High Efficiency Shell Mounting Low Noise

Nominal voltage: 1.3~12.0 V DC
No-load speed : 7000~66000 RPM
Stall torque: 0.05~0.581mNm
Stall current: 0.032~1.156 A

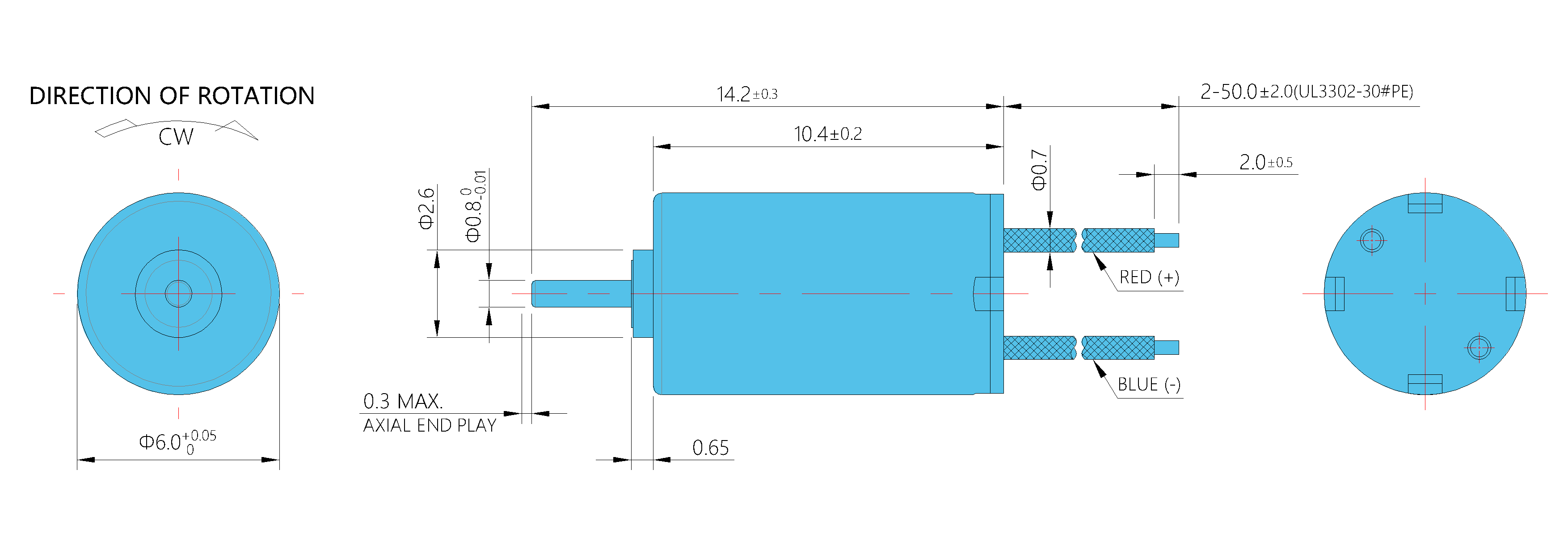

Diameter: 6.0 mm
Length: 10.4 mm

Typical Application:
Aircraft Rudder
Speed Reducer
Robot

Contact Now

1	Model	MD0610	-6	-10	-5	-28	-8
2	Rated Voltage	V DC	1.5	3.7	5	7.4	12
3	No-Load Speed	RPM	20000	38000	20000	66000	55000
4	No-Load Current	mA	15	21	5	35	14
5	Stall Torque	mNm	0.136	0.268	0.163	0.561	0.42
6	Stall Current	A	0.216	0.325	0.077	0.592	0.228
7	Rated Speed	RPM	14355	27637	14509	49456	40680
8	Rated Torque	mNm	0.037	0.07	0.043	0.141	0.108
9	Rated Current	A	0.07	0.101	0.024	0.175	0.069
10	Rated Output Power	W	0.06	0.2	0.07	0.73	0.46
11	Maximun Efficiency	%	53	55	54	56	56
12	Maximun Output Power	W	0.07	0.26	0.08	0.97	0.6
13	Terminal Resistance	Ω	6.95	11.4	65	12.5	52.7
14	Current Constant	A/mNm	1.482	1.135	0.441	0.993	0.508
15	Torque Constant	mNm/A	0.675	0.881	2.266	1.007	1.967
16	Speed Constant	RPM/V	14152	10836	4215	9479	4855
17	Friction Torque	mNm	0.01	0.019	0.011	0.035	0.028
18	Speed/torque gradient	RPM/mNm	145769	140182	120917	117624	130063

coreless dc motorDC Coreless Motorcoreless dc motorDC Coreless Motorcoreless dc motorDC Coreless Motorcoreless dc motorDC Coreless Motorcoreless dc motorDC Coreless Motorcoreless dc motorDC Coreless Motorcoreless dc motorDC Coreless Motormini linear servomini linear servomini linear servomini linear servomini linear servomini linear servomini linear servo

DC Coreless Motor Customization Options：

Motor Housing: Diameter, Length
Motor Shaft: Diameter, Length, Output Direction, Quantity
Bearing Type: Ball Bearings / Sleeve Bearings
Number of Commutator Segments: 3 / 5 / 7 / 9 / 11 / 13
Brush Type: Precious Metal Brushes / Carbon Brushes
Power Connection: Lead Wires / Connector / Terminal Pins / Other
Mounting Type: Shell / Flange / Other
Position Sensor: Hall / Magnetoelectric / Photoelectric
Gear Reducer: Planetary Gearbox
