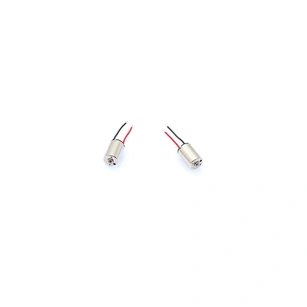

Model No: MD0609
0609 Coreless Brushed DC Motor Permanent Magnet ROHS Certified 6mm Frame High Efficiency for Drone Applications
Nominal voltage: 1.5 ~ 5 V DC
No-load speed : 25000 ~ 65000 RPM
Stall torque: 0.094 ~ 0.465 mNm
Stall current: 0.071 ~ 0.569 A

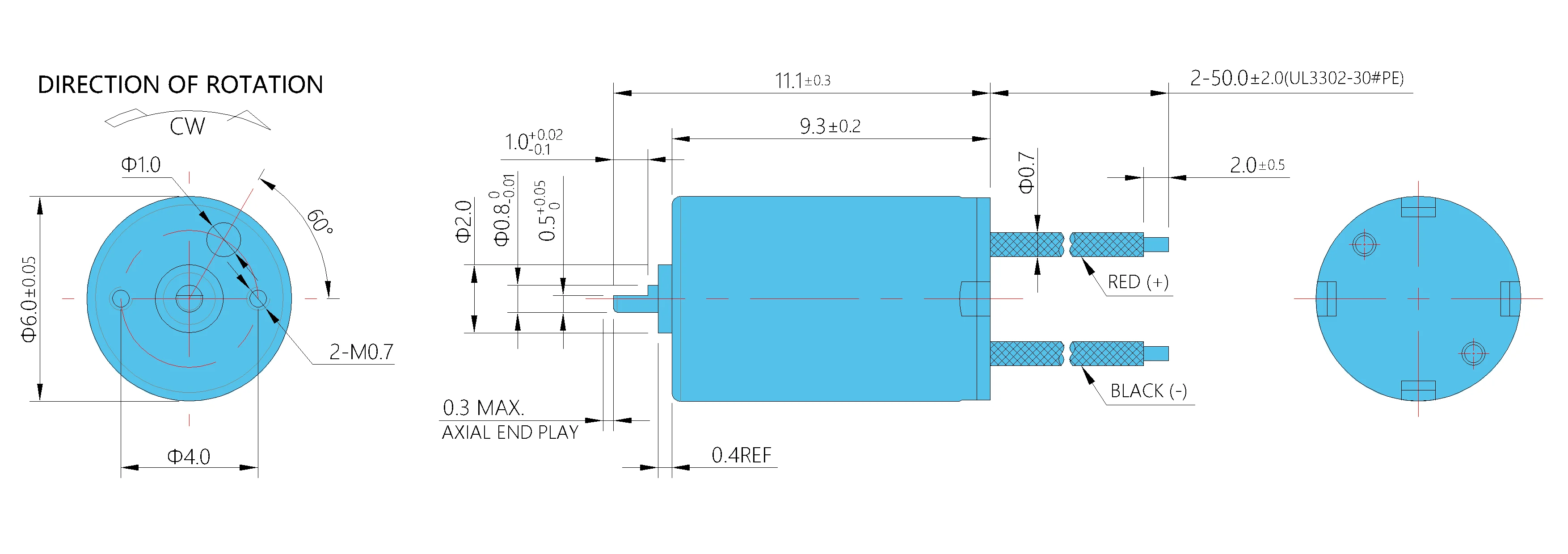

Diameter: 6.0 mm
Length: 9.3 mm
Typical Application:
Aircraft Rudder
Speed Reducer
Robot
No-load speed : 25000 ~ 65000 RPM
Stall torque: 0.094 ~ 0.465 mNm
Stall current: 0.071 ~ 0.569 A
Diameter: 6.0 mm
Length: 9.3 mm
Typical Application:
Aircraft Rudder
Speed Reducer
Robot
| 1 | Model | MD0609 | -15 | -08 | -02 | -11 | -12 |
| 2 | Rated Voltage | V DC | 1.5 | 3 | 3 | 5 | 5 |
| 3 | No-Load Speed | RPM | 30000 | 36000 | 33000 | 49000 | 33000 |
| 4 | No-Load Current | mA | 46 | 16 | 21 | 29.3 | 13.7 |
| 5 | Stall Torque | mNm | 0.149 | 0.125 | 0.15 | 0.27 | 0.154 |
| 6 | Stall Current | A | 0.401 | 0.188 | 0.211 | 0.331 | 0.132 |
| 7 | Rated Speed | RPM | 19292 | 25004 | 21883 | 33447 | 21716 |
| 8 | Rated Torque | mNm | 0.054 | 0.038 | 0.05 | 0.084 | 0.052 |
| 9 | Rated Current | A | 0.174 | 0.068 | 0.084 | 0.123 | 0.054 |
| 10 | Rated Output Power | W | 0.11 | 0.1 | 0.11 | 0.3 | 0.12 |
| 11 | Maximun Efficiency | % | 42 | 49 | 45 | 48 | 44 |
| 12 | Maximun Output Power | W | 0.12 | 0.12 | 0.13 | 0.34 | 0.13 |
| 13 | Terminal Resistance | Ω | 3.74 | 16 | 14.2 | 15.1 | 37.9 |
| 14 | Current Constant | A/mNm | 2.377 | 1.374 | 1.27 | 1.116 | 0.769 |
| 15 | Torque Constant | mNm/A | 0.421 | 0.728 | 0.787 | 0.896 | 1.3 |
| 16 | Speed Constant | RPM/V | 22696 | 13120 | 12129 | 10660 | 7348 |
| 17 | Friction Torque | mNm | 0.019 | 0.012 | 0.017 | 0.026 | 0.018 |
| 18 | Speed/torque gradient | RPM/mNm | 201751 | 288393 | 218758 | 179691 | 214283 |
