Model No: MD1718

12V 1718 Permanent Magnet DC Brush Coreless Motor

Nominal voltage: 3.7~12.0 V DC
No-load speed : 6000~35000 rpm/min
Stall torque: 4.2~20.5 m.Nm
Stall current: 800~13000 mA

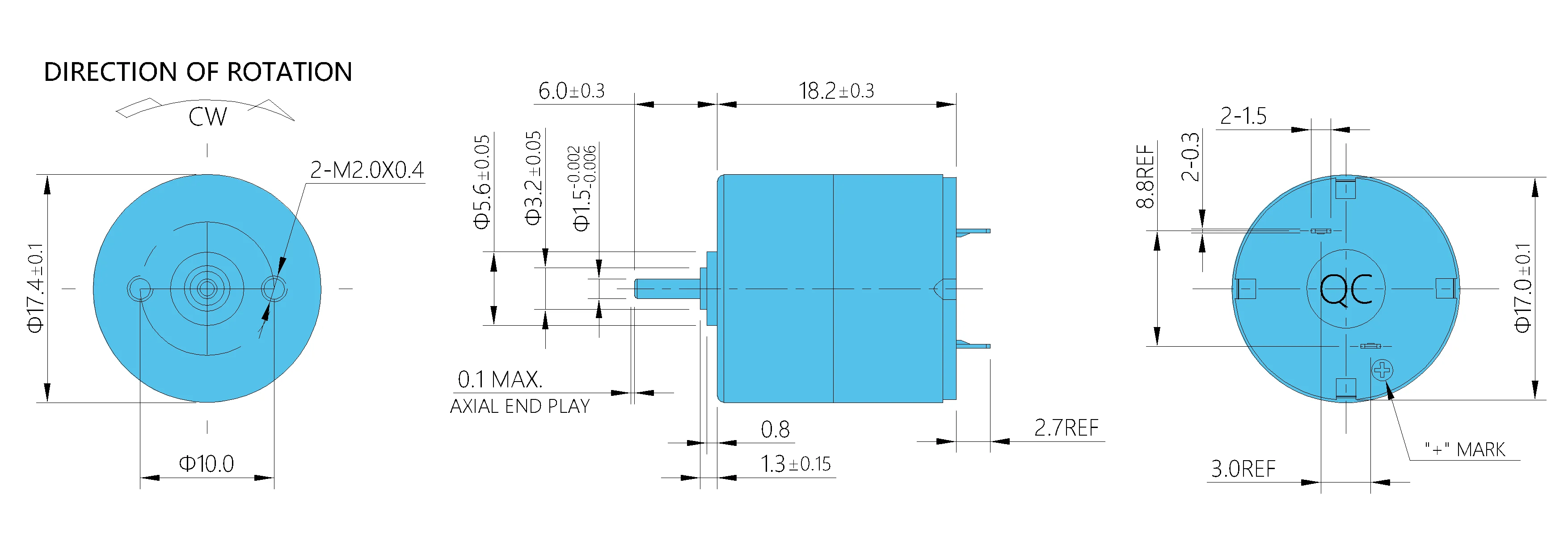

Diameter: 17.4 mm
Length: 18.2 mm

Typical Application:
Aircraft Rudder
Model Train
Industrial Equipment

Contact Now


1	Model	MD1718	-005	-001	-007	-002	-019
2	Rated Voltage	V DC	3.7	5	7.4	11.1	12
3	No-Load Speed	RPM	18000	18000	31000	22000	18000
4	No-Load Current	mA	140	100	120	80	40
5	Stall Torque	mNm	15.432	17.421	22.934	17.572	17.61
6	Stall Current	A	7.872	6.494	10.278	3.75	2.791
7	Rated Speed	RPM	16011	16042	28901	20045	16379
8	Rated Current	A	1.472	1.488	1.757	1.706	1.496
9	Rated Torque	mNm	0.815	0.597	0.843	0.396	0.255
10	Rated Output Power	W	2.47	2.5	5.32	3.58	2.57
11	Maximun Efficiency	%	82	84	85	82	84
12	Maximun Output Power	W	7.15	8	18.79	10.21	8.25
13	Terminal Resistance	Ω	0.47	0.77	0.72	2.96	4.3
14	Torque Constant	mNm/A	1.978	2.702	2.244	4.73	6.356
15	Speed Constant	RPM/V	4827	3534	4255	2019	1502
16	Current Constant	A/mNm	0.506	0.37	0.446	0.211	0.157
17	Friction Torque	mNm	0.14	0.127	0.135	0.166	0.127
18	Speed/torque gradient	RPM/mNm	1147	1007	1365	1263	1016

dc coreless motordc coreless motordc coreless motordc coreless motordc coreless motordc coreless motordc coreless motordc coreless motor

tattoo machine high torque micro motortattoo machine high torque micro motortattoo machine high torque micro motortattoo machine high torque micro motortattoo machine high torque micro motortattoo machine high torque micro motortattoo machine high torque micro motortattoo machine high torque micro motortattoo machine high torque micro motort12 volt powerful dc motor12 volt powerful dc motor12 volt powerful dc motor12 volt powerful dc motor12 volt powerful dc motor12 volt powerful dc motor12 volt powerful dc motor12 volt powerful dc motorv

tattoo machine motor tattoo machine motor tattoo machine motor tattoo machine motor tattoo machine motor tattoo machine motor tattoo machine motor tattoo machine motor

high torque micro motor high torque micro motor high torque micro motor high torque micro motor high torque micro motor high torque micro motor

12v motor 12v motor 12v motor 12v motor 12v motor 12v motor 12v motor

DC Coreless Motor Customization Options：

Motor Housing: Diameter, Length
Motor Shaft: Diameter, Length, Output Direction, Quantity
Bearing Type: Ball Bearings / Sleeve Bearings
Number of Commutator Segments: 3 / 5 / 7 / 9 / 11 / 13
Brush Type: Precious Metal Brushes / Carbon Brushes
Power Connection: Lead Wires / Connector / Terminal Pins / Other
Mounting Type: Shell / Flange / Other
Position Sensor: Hall / Magnetoelectric / Photoelectric
Gear Reducer: Planetary Gearbox
