Model No: MD2235 Motor

7.4v 2235 DC Coreless Diameter 22mm Motor Low Noise for Power Tool

Nominal voltage: 7.4~7.4 V DC
No-load speed : 17000~17000 RPM
Stall torque: 44~44mNm
Stall current: 11~11A

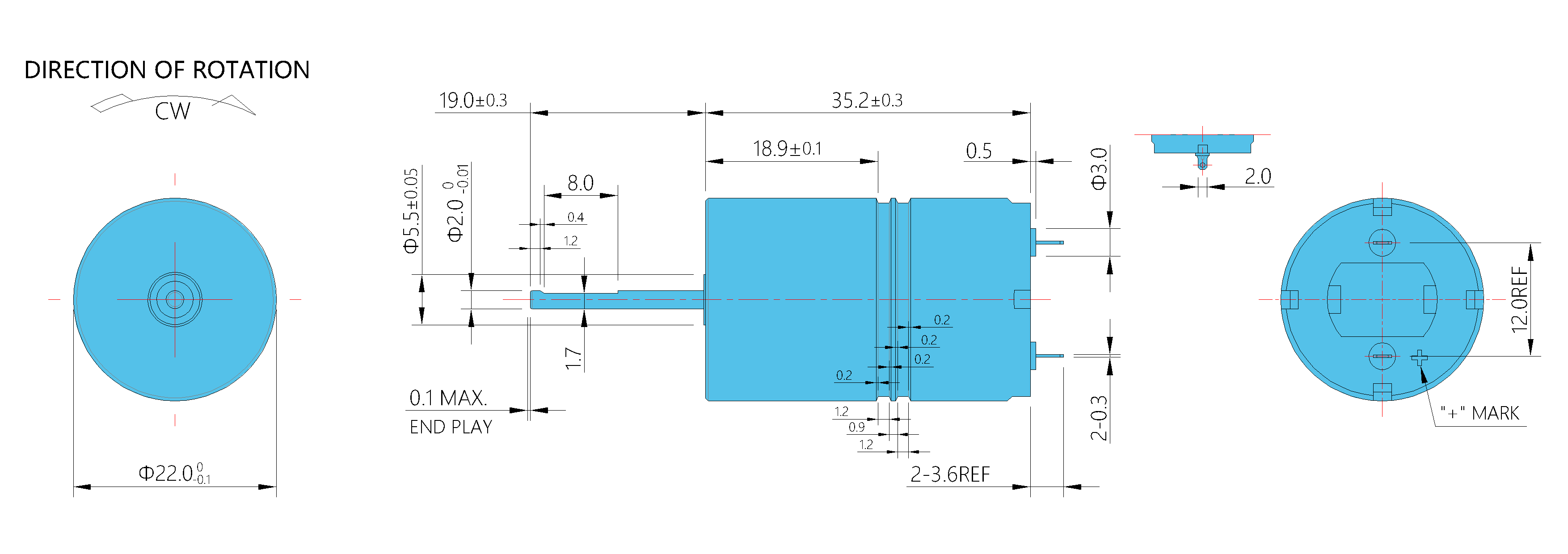

Diameter: 22 mm
Length: 35.2 mm

Typical Application:
Industrial Equipment
​ Nail Gun
Contact Now
1ModelMD2235-01-02-03-05-07
2Rated VoltageV DC3691224
3No-Load SpeedRPM60006000600060006000
4No-Load CurrentmA178642
5Stall TorquemNm16.06214.9516.14714.53917.545
6Stall CurrentA3.4091.5791.1390.7690.463
7Rated SpeedRPM55945563556355665605
8Rated TorquemNm1.1371.0671.1751.0511.155
9Rated CurrentA0.2570.120.0880.0590.032
10Rated Output PowerW0.670.620.680.610.68
11Maximun Efficiency%8686868687
12Maximun Output PowerW2.532.342.542.282.76
13Terminal ResistanceΩ0.883.87.915.651.8
14Current ConstantA/mNm0.2110.1050.070.0530.026
15Torque ConstantmNm/A4.7359.51714.24918.99938.032
16Speed ConstantRPM/V20171003670503251
17Friction TorquemNm0.080.0760.0850.0760.076
18Speed/torque gradientRPM/mNm375401372413342
