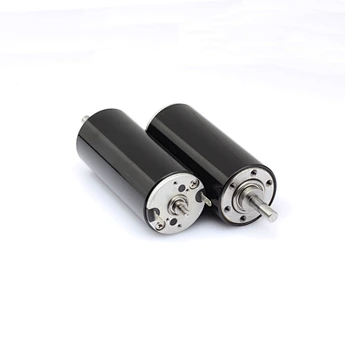

Model No: 3068D Motor
Hot Sale 3068 Dual Shaft Diameter 30MM Coreless DC Motor 12V 18V 24V 36V 48V Motor
Nominal voltage: 12~48 V DC
No-load speed : 8160~8950 RPM
Stall torque: 641~1076 m.Nm
Stall current: 17~75 A

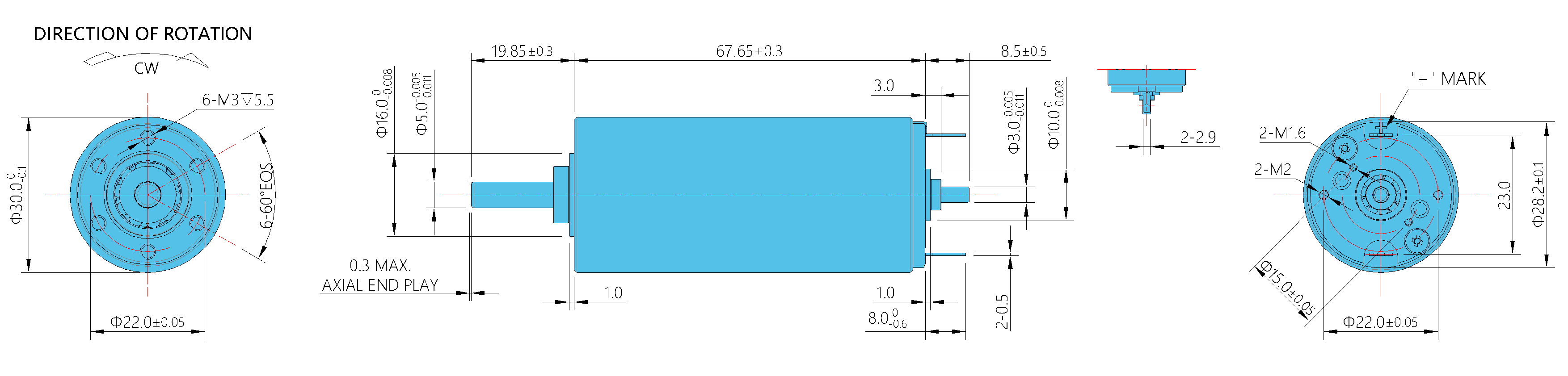

Diameter: 30.0 mm
Length: 67.65 mm
Typical Application:
Aircraft Rudder
Industrial Equipment
Aerospace
No-load speed : 8160~8950 RPM
Stall torque: 641~1076 m.Nm
Stall current: 17~75 A
Diameter: 30.0 mm
Length: 67.65 mm
Typical Application:
Aircraft Rudder
Industrial Equipment
Aerospace
| 1 | Model | MD3068D | -1 | -2 | -3 | -4 | -5 |
| 2 | Rated Voltage | V DC | 12 | 18 | 24 | 36 | 48 |
| 3 | No-Load Speed | RPM | 8160 | 8540 | 8950 | 8590 | 8650 |
| 4 | No-Load Current | mA | 280 | 180 | 106 | 95 | 70 |
| 5 | Stall Torque | mNm | 1045.382 | 1042.888 | 641.498 | 1075.667 | 907.537 |
| 6 | Stall Current | A | 75 | 52.174 | 25.263 | 27.068 | 17.266 |
| 7 | Rated Speed | RPM | 7660 | 8038 | 8369 | 8080 | 8098 |
| 8 | Rated Torque | mNm | 63.993 | 61.362 | 41.641 | 63.838 | 57.903 |
| 9 | Rated Current | A | 4.854 | 3.239 | 1.739 | 1.696 | 1.167 |
| 10 | Rated Output Power | W | 51.34 | 51.65 | 36.49 | 54.02 | 49.1 |
| 11 | Maximun Efficiency | % | 88 | 89 | 87 | 88 | 88 |
| 12 | Maximun Output Power | W | 223.32 | 233.17 | 150.31 | 241.9 | 205.52 |
| 13 | Terminal Resistance | Ω | 0.16 | 0.345 | 0.95 | 1.33 | 2.78 |
| 14 | Current Constant | A/mNm | 0.071 | 0.05 | 0.039 | 0.025 | 0.019 |
| 15 | Torque Constant | mNm/A | 13.991 | 20.058 | 25.5 | 39.88 | 52.775 |
| 16 | Speed Constant | RPM/V | 683 | 476 | 374 | 239 | 181 |
| 17 | Friction Torque | mNm | 3.917 | 3.61 | 2.703 | 3.789 | 3.694 |
| 18 | Speed/torque gradient | RPM/mNm | 8 | 8 | 14 | 8 | 10 |
