Model No: MD1724

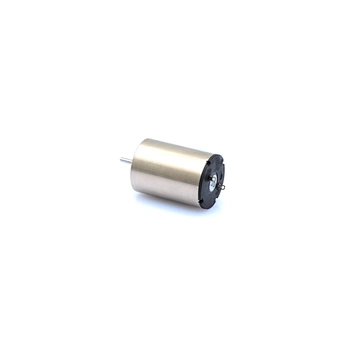

1724 Coreless Permanent Magnet DC Brushed Motor High Efficiency Shell Mounting for Electric Bicycle/Fan Use

Nominal voltage: 5 ~ 12 V DC
No-load speed : 7000 ~ 13000 RPM
Stall torque: 15 ~ 28 mNm
Stall current: 2.4 ~ 3.1 A

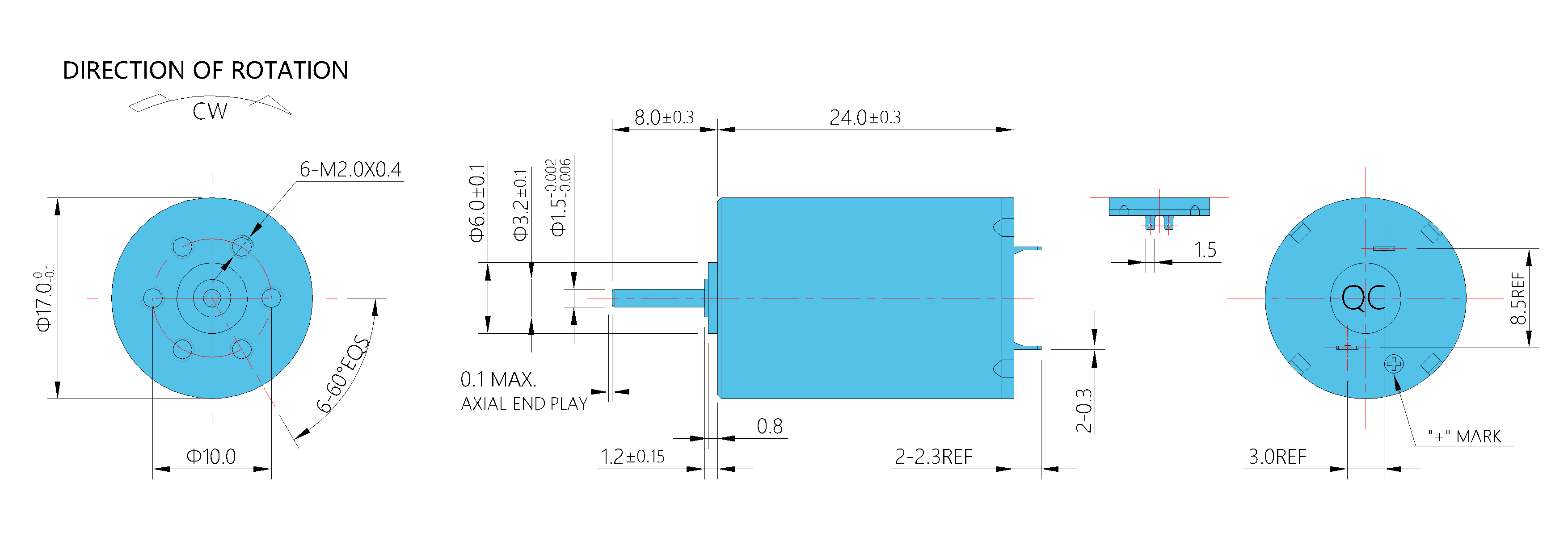

Diameter: 17.0 mm
Length: 24.0 mm

Typical Application:
Robot
Industrial Equipment
Tattoo machine
Contact Now
1ModelMD1724-04-02-05-03-06
2Rated VoltageV DC56121218
3No-Load SpeedRPM700080008000120008000
4No-Load CurrentmA18168125
5Stall TorquemNm15.30614.95414.48422.85314.381
6Stall CurrentA2.372.1281.0312.4590.682
7Rated SpeedRPM664373317320113557340
8Rated TorquemNm1.3391.3021.2811.61.236
9Rated CurrentA0.2240.20.0980.1830.063
10Rated Output PowerW0.9310.981.90.95
11Maximun Efficiency%8383838684
12Maximun Output PowerW2.923.143.047.313.02
13Terminal ResistanceΩ2.112.8211.644.8826.4
14Current ConstantA/mNm0.1540.1410.0710.1070.047
15Torque ConstantmNm/A6.5097.08214.169.33921.249
16Speed ConstantRPM/V146713486741022449
17Friction TorquemNm0.1170.1130.1130.1120.106
18Speed/torque gradientRPM/mNm476537554534558
